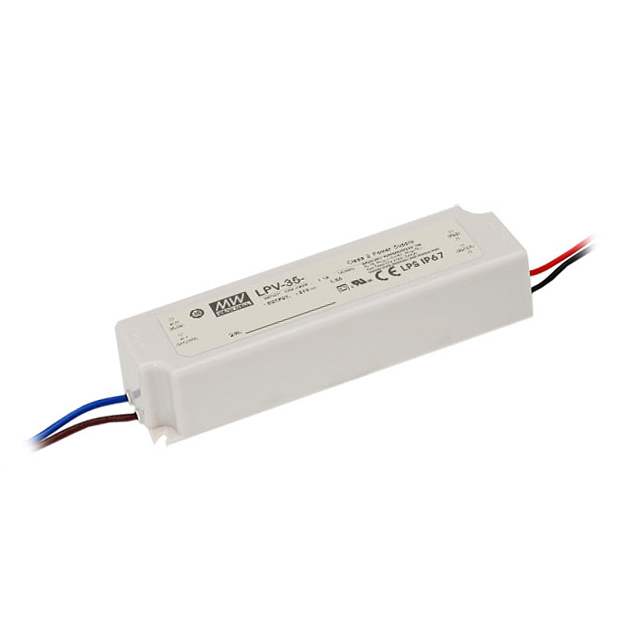

LPV-35-5

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 5V 5A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 5V 5A

Technical Specifications

Parameters and characteristics for this part

Part	Features	Topology	Type	Termination Style	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Approval Agency	Number of Outputs	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Voltage - Input (Max) [Max]	Power (Watts)	Ratings
MEAN WELL USA Inc. LPV-35-15	OCP OVP SCP	AC DC Converter	Constant Voltage	Wire Leads	15 VDC	65 °C	-30 ░C	Chassis Mount	3000 V	CB CE cURus	1	90 VAC	2.4 A	1.57 "	148 mm	1.18 in	30 mm	40 mm	5.83 in	84 %	264 VAC	36 W	IP67
MEAN WELL USA Inc. LPV-35-24	OCP OVP SCP	AC DC Converter	Constant Voltage	Wire Leads	24 V	65 °C	-30 ░C	Chassis Mount	3000 V	CB CE cURus	1	90 VAC	1.5 A	1.57 "	148 mm	1.18 in	30 mm	40 mm	5.83 in	85 %	264 VAC	36 W	IP67
MEAN WELL USA Inc. LPV-35-5	OCP OVP SCP	AC DC Converter	Constant Voltage	Wire Leads	5 V	65 °C	-30 ░C	Chassis Mount	3000 V	CB CE cURus	1	90 VAC	5 A	1.57 "	148 mm	1.18 in	30 mm	40 mm	5.83 in	77 %	264 VAC	30 W	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5A 5V Constant Voltage LED Driver AC DC Converter Topology 1 Output
