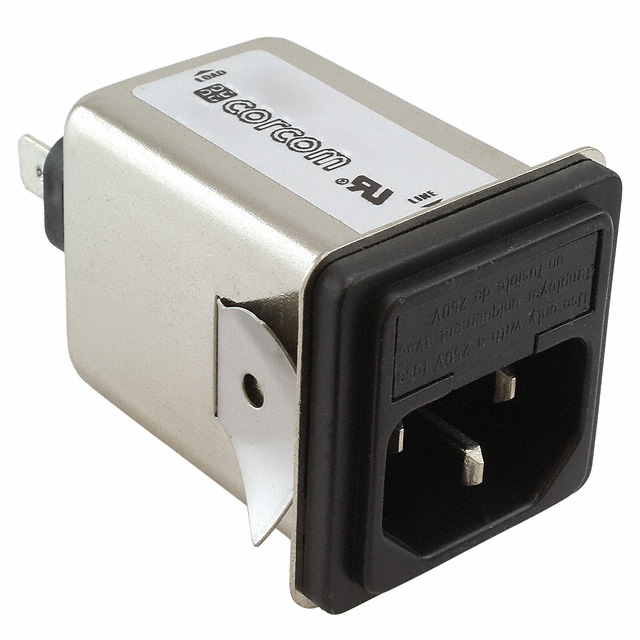

1609988-3

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	1609988-3

Accomodates a Fuse	True
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Snap-In
Panel Thickness [Max]	2.03 mm
Panel Thickness [Max]	0.08 in
Panel Thickness [Min]	0.032 in
Panel Thickness [Min]	0.81 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Connector Type	Accomodates a Fuse	Current Rating - Filter	Mounting Type	Connector Style	Fuse Holder, Drawer	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Termination	Termination	Termination	Filter Type
TE Connectivity Corcom Filters 1609988-3	250 VAC	6 A	Receptacle, Male Blades - Module		6 A	Panel Mount, Snap-In	IEC 320-C14	Fuse Holder, Twin Fused	2.03 mm	0.032 in	0.08 in	0.81 mm	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	108	$ 23.68

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
