HURC1-2-01

Active

Essentra Access Solutions

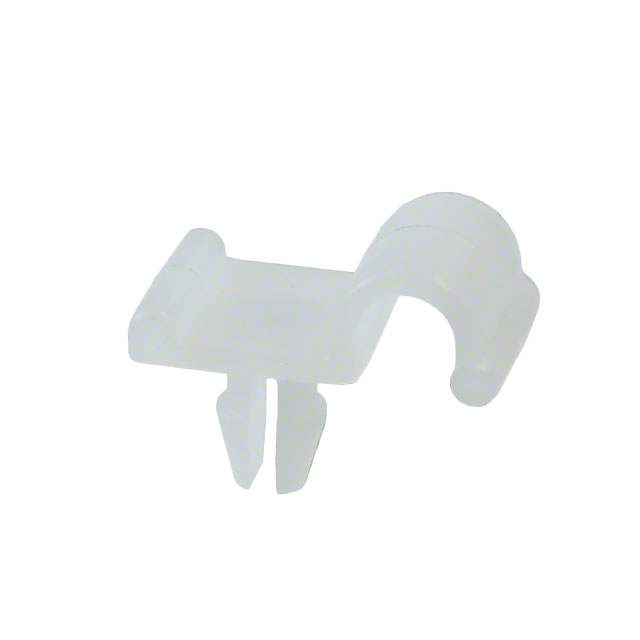

CBL CLIP U-TYPE NATURAL PUSH IN

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP U-TYPE NATURAL PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	HURC1-2-01

Bundle Center to Mounting Center [x]	5.08 mm
Bundle Center to Mounting Center [x]	0.2 in
Color	Natural
Height [z]	4.32 mm
Height [z]	0.17 in
Length	12.45 mm
Length [x]	0.49 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Push In
Opening Size	3.18 mm
Opening Size [z]	0.125 in
Panel Hole Size [diameter]	3.18 mm
Panel Hole Size [diameter]	0.125 in
Panel Thickness	2.36 mm
Panel Thickness	0.093 in
Type Attributes	Half
Width	7.62 mm
Width [x]	0.3 "

Part	Length	Length [x]	Color	Opening Size [z]	Opening Size	Width [x]	Width	Height [z]	Height [z]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Type Attributes	Material	Mounting Type	Material Flammability Rating	Panel Thickness	Panel Thickness	Panel Hole Size [diameter]	Panel Hole Size [diameter]
Essentra Access Solutions HURC1-2-01	12.45 mm	0.49 in	Natural	0.125 in	3.18 mm	0.3 "	7.62 mm	4.32 mm	0.17 in	5.08 mm	0.2 in	Half	Polyamide (PA66) Nylon 6/6	Push In	UL94 V-2	2.36 mm	0.093 in	3.18 mm	0.125 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, U-Type Natural Push In 0.125" (3.18mm)

Technical documentation and resources

No documents available
