KIT-DIGI-KEY-ILLUMINATED
ActiveNKK Switches

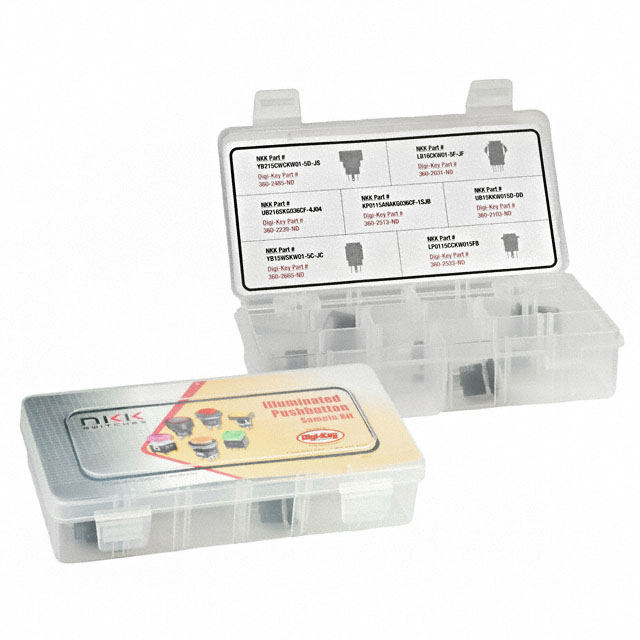

KIT PUSH SWITCH 7 PCS ILLUMINATE
Deep-Dive with AI
Search across all available documentation for this part.
KIT-DIGI-KEY-ILLUMINATED
ActiveNKK Switches
KIT PUSH SWITCH 7 PCS ILLUMINATE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KIT-DIGI-KEY-ILLUMINATED |
|---|---|
| Actuator Type | Assorted Button |
| Circuit | SPDT, SPST-NO |
| Current - Switching | 3 A, 0.4 VA, 100 mA, 5 A |
| Kit Type | Pushbutton, Illuminated |
| Mounting Type | Panel Mount, Snap-In, Through Hole, Panel Mount, Front |
| Quantity | 7 Pieces |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm), Solder Lug, PC Pin |
| Voltage Rating - AC | 125 V, 28 V |
| Voltage Rating - DC | 30 V, 12 V, 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 79.08 | |
| 10 | $ 72.05 | |||
| 25 | $ 67.22 | |||
| 50 | $ 64.58 | |||
| 100 | $ 60.19 | |||
Description
General part information
KIT-DIG Series
Switch Kit Pushbutton, Illuminated
