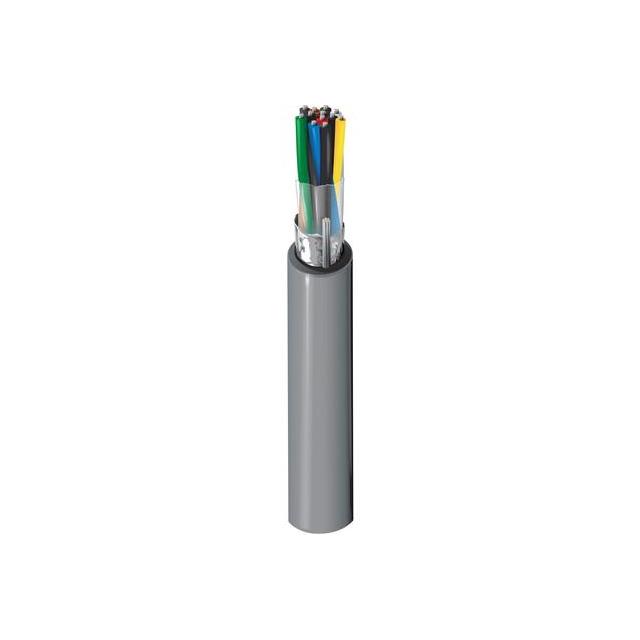

9184 0101000

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	9184 0101000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.4 "
Jacket (Insulation) Diameter [diameter]	10.16 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.041 mm
Jacket (Insulation) Thickness	0.041 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style 2668
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Strand	Jacket (Insulation) Material	Cable Type	Features	Usage	Jacket Color	Conductor Insulation	Shield Type	Shield Material	Wire Gauge	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Material	Voltage	Ratings
Belden Inc. 9184 0101000	Solid	Poly-Vinyl Chloride (PVC)	Multi-Pair	Drain Wire	Audio Control Instrumentation	Black	Foam Polyethylene (FPE)	Foil	Aluminum	22 AWG	4	1.041 mm	0.041 in	100 %	0.4 "	10.16 mm	1000 ft	304.8 m	Copper Tinned	300 V	UL Style 2668

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.56

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 22 AWG Foil 1000.0' (304.8m)
