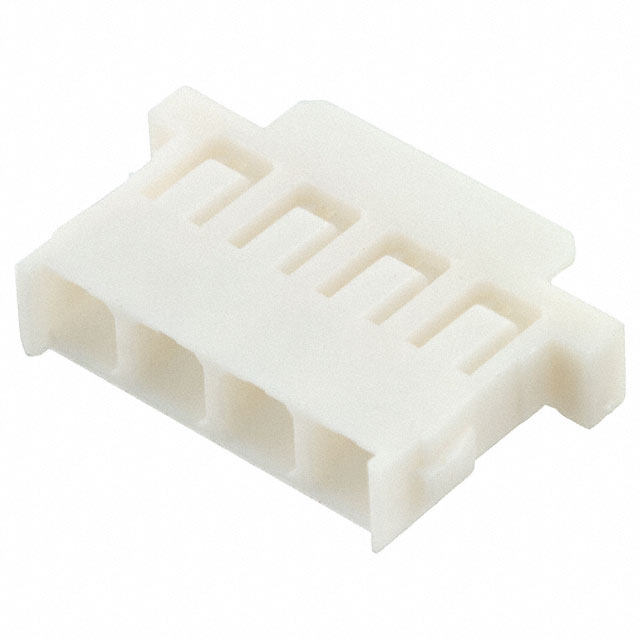

ES9S004SZZ
ActiveJAE Electronics
CONN SOCKET HSG 4POS 3.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ES9S004SZZ
ActiveJAE Electronics
CONN SOCKET HSG 4POS 3.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ES9S004SZZ |
|---|---|
| Color | White |
| Connector Type | Socket |
| Contact Termination | Crimp |
| Contact Type | Female Blade Socket |
| Fastening Type | Spring Lock |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3 mm |
| Pitch [x] | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.23 | |
Description
General part information
ES9S004S Series
4 Rectangular Connectors - Housings Socket White 0.118" (3.00mm)
Documents
Technical documentation and resources
