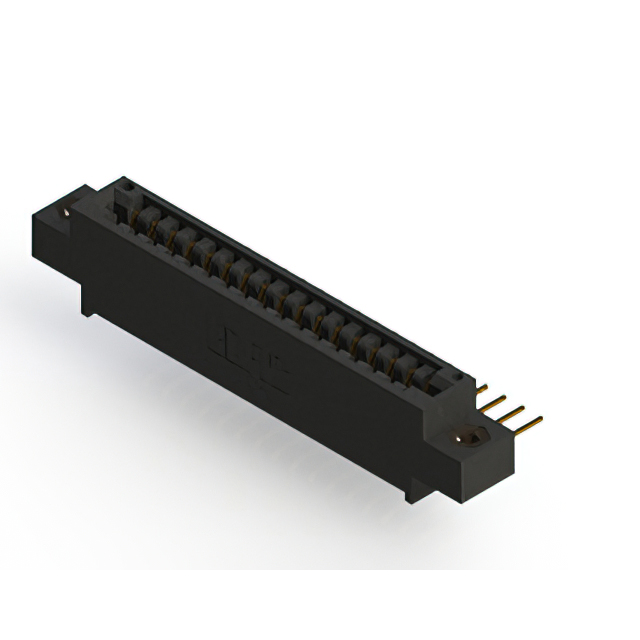

896-017-559-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 17POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-017-559-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 17POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-017-559-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
896-017 Series
| Part | Pitch [x] | Pitch [x] | Card Type | Contact Type | Termination | Color | Material - Insulation | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Read Out | Gender | Number of Rows | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Solder | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | 125 °C | -40 °C | 1 | 10 Áin | 0.25 Ám | Through Hole | Single | Female | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Solder | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | 125 °C | -40 °C | 1 | 10 Áin | 0.25 Ám | Through Hole Right Angle | Single | Female | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Solder | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | 125 °C | -40 °C | 1 | 10 Áin | 0.25 Ám | Through Hole | Single | Female | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm | ||
EDAC Inc. | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Solder Eyelet(s) | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | 125 °C | -40 °C | 1 | 10 Áin | 0.25 Ám | Through Hole | Single | Female | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Solder Eyelet(s) | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | 125 °C | -40 °C | 1 | 10 Áin | 0.25 Ám | Through Hole | Single | Female | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | 0.116 in | 2.95 mm | ||
EDAC Inc. | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Solder | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | 125 °C | -40 °C | 1 | 10 Áin | 0.25 Ám | Through Hole | Single | Female | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Solder | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | 125 °C | -40 °C | 1 | 10 Áin | 0.25 Ám | Through Hole | Single | Female | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | ||
EDAC Inc. | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Wire Wrap | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | 125 °C | -40 °C | 1 | 10 Áin | 0.25 Ám | Through Hole | Single | Female | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Solder Eyelet(s) | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | 125 °C | -40 °C | 1 | 10 Áin | 0.25 Ám | Through Hole | Single | Female | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Solder Eyelet(s) | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | 125 °C | -40 °C | 1 | 10 Áin | 0.25 Ám | Through Hole | Single | Female | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 67.16 | |
Description
General part information
896-017 Series
17 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
