SSF-LXH103ID-5V
ActiveLumex Opto/Components Inc.
LED CBI 3MM RED RA PCMNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSF-LXH103ID-5V
ActiveLumex Opto/Components Inc.
LED CBI 3MM RED RA PCMNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SSF-LXH103ID-5V | SSF-LXH103 Series |
|---|---|---|
| Color | Red | Blue, Green, Red, Yellow, White |
| Configuration | Single | Single |
| Current | 12 mA | 12 mA |
| Current | - | 25 mA |
| Current | - | 25 mA |
| Lens Size | 3 mm | 3 mm |
| Lens Size | T-1 | T-1 |
| Lens Size | - | 3 mm |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Type | Tinted, Diffused | Tinted, Diffused, White, Green |
| Millicandela Rating | 9 mcd | 9 - 1200 mcd |
| Millicandela Rating | - | 8 mcd |
| Millicandela Rating | - | 4 mcd |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Viewing Angle | 80 ° | 8 - 80 ° |
| Voltage Rating | 5 V | 1.8 - 5 V |
| Wavelength - Peak | 635 nm | 550 - 660 nm |
| Wavelength - Peak | - | 565 - 700 nm |
SSF-LXH103 Series
LED CBI 3MM BLU RA PCMNT
| Part | Mounting Type | Viewing Angle | Millicandela Rating | Color | Lens Style | Configuration | Lens Type | Lens Size | Lens Size | Wavelength - Peak | Voltage Rating | Lens Size [diameter] | Current | Millicandela Rating [custom] | Millicandela Rating [custom] | Wavelength - Peak [custom] | Current [custom] | Current [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SSF-LXH103USBD | Through Hole, Right Angle | 60 ° | 80 mcd | Blue | Round with Domed Top | Single | Diffused, Tinted | 3 mm | T-1 | |||||||||
Lumex Opto/Components Inc. SSF-LXH103GD | Through Hole, Right Angle | 60 ° | 30 mcd | Green | Round with Domed Top | Single | Diffused, Tinted | 3 mm | T-1 | 565 nm | 2.1 V | |||||||
Lumex Opto/Components Inc. SSF-LXH103SRD | Through Hole, Right Angle | 60 ° | 80 mcd | Red | Round with Domed Top | Single | Diffused, Tinted | 3 mm | T-1 | 660 nm | 1.8 V | |||||||
Lumex Opto/Components Inc. SSF-LXH103SYD | Through Hole, Right Angle | 60 ° | 100 mcd | Yellow | Round with Domed Top | Single | Diffused, Tinted | 3 mm | T-1 | 590 nm | 2 V | |||||||
Lumex Opto/Components Inc. SSF-LXH103LGD | Through Hole, Right Angle | 80 ° | 15 mcd | Green | Round with Domed Top | Single | Diffused, Tinted | 3 mm | T-1 | 565 nm | 2.1 V | |||||||
Lumex Opto/Components Inc. SSF-LXH103UWC | Through Hole, Right Angle | 34 ° | 1200 mcd | White | Single | Diffused, White | 550 nm | 3.6 V | ||||||||||
Lumex Opto/Components Inc. SSF-LXH103ID | Through Hole, Right Angle | 60 ° | 30 mcd | Red | Round with Domed Top | Single | Diffused, Tinted | 635 nm | 2.1 V | 3 mm | ||||||||
Lumex Opto/Components Inc. SSF-LXH103UWW | Through Hole, Right Angle | 30 ° | 500 mcd | White | Single | Diffused, White | 550 nm | 3.6 V | ||||||||||
Lumex Opto/Components Inc. SSF-LXH103GD-5V | Through Hole, Right Angle | 8 ° | 80 mcd | Green | Round with Domed Top | Single | Diffused, Tinted | 3 mm | T-1 | 565 nm | 5 V | 12 mA | ||||||
Lumex Opto/Components Inc. SSF-LXH103ID-5V | Through Hole, Right Angle | 80 ° | 9 mcd | Red | Round with Domed Top | Single | Diffused, Tinted | 3 mm | T-1 | 635 nm | 5 V | 12 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SSF-LXH103 Series

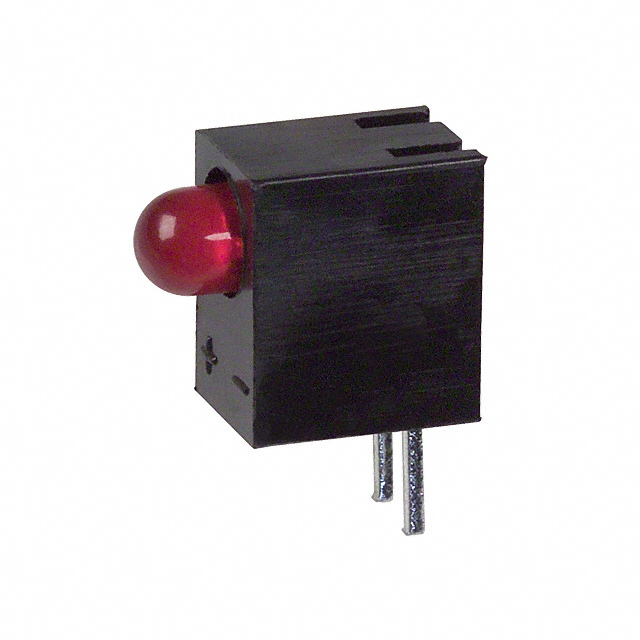

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 5V 12mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
