FN3268-42-33
ActiveTE Connectivity Raychem Cable Protection

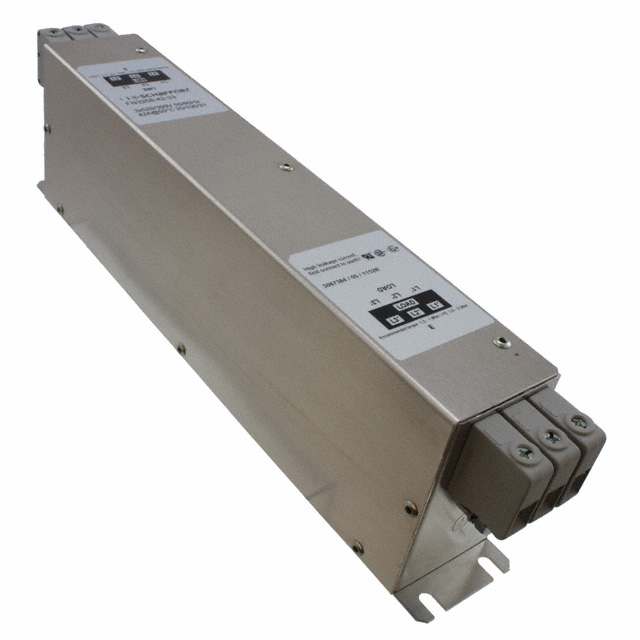

LINE FILTER 42A CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN3268-42-33
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 42A CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN3268-42-33 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Single Stage |
| Current | 42 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 300 V |
| Voltage - Rated AC (Phase to Phase) | 520 V |
FN3268 Series
| Part | Filter Type | Configuration | Approval Agency | Applications | Frequency - Operating [Max] | Frequency - Operating [Min] | Current | Termination Style | Voltage - Rated AC (Phase to Ground/Neutral) | Mounting Type | Operating Temperature [custom] | Voltage - Rated AC (Phase to Phase) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Three Phase (Delta) | Single Stage | CSA ENEC UR | General Purpose | 60 Hz | DC | 75 A | Terminal Block | 300 V | Chassis Mount | -25 °C 100 °C | 520 V |
TE Connectivity Raychem Cable Protection | Three Phase (Delta) | Single Stage | CSA ENEC UR | General Purpose | 60 Hz | DC | 16 A | Terminal Block | 300 V | Chassis Mount | -25 °C 100 °C | 520 V |
TE Connectivity Raychem Cable Protection | Three Phase (Delta) | Single Stage | CSA ENEC UR | General Purpose | 60 Hz | DC | 55 A | Terminal Block | 300 V | Chassis Mount | -25 °C 100 °C | 520 V |
TE Connectivity Raychem Cable Protection | Three Phase (Delta) | Single Stage | CSA ENEC UR | General Purpose | 60 Hz | DC | 130 A | Terminal Block | 300 V | Chassis Mount | -25 °C 100 °C | 520 V |
TE Connectivity Raychem Cable Protection | Three Phase (Delta) | Single Stage | CSA ENEC UR | General Purpose | 60 Hz | DC | 42 A | Terminal Block | 300 V | Chassis Mount | -25 °C 100 °C | 520 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 6 | $ 337.27 | |
Description
General part information
FN3268 Series
Three Phase (Delta) EMC/EMI Line Filter 42 A DC ~ 60Hz Single Stage Terminal Block
