QBSS400R

Active

QT Brightek (QTB)

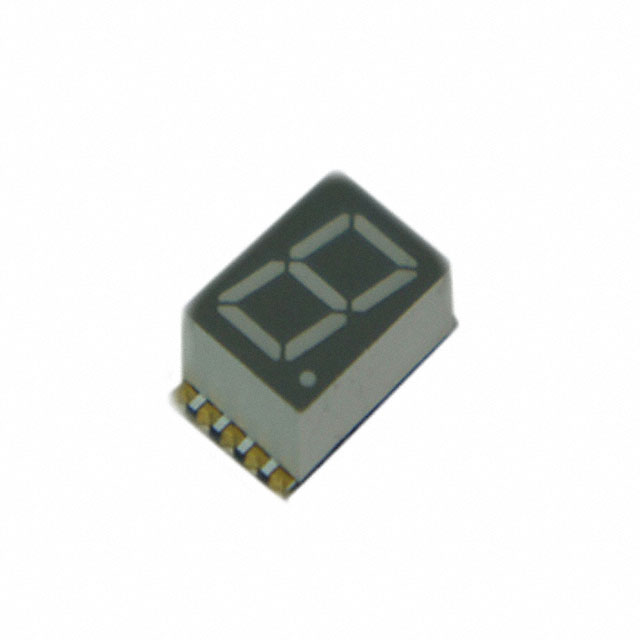

DISPLAY 7-SEG 0.4" SGL RED 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBSS400R

Active

QT Brightek (QTB)

DISPLAY 7-SEG 0.4" SGL RED 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QBSS400R

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Millicandela Rating	20 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	70 mW
Size / Dimension [x]	0.512 in
Size / Dimension [x]	13 mm
Size / Dimension [y]	9.25 mm
Size / Dimension [y]	0.364 in
Size / Dimension [z]	0.124 in
Size / Dimension [z]	3.15 mm
Voltage - Forward (Vf) (Typ)	2 V

QBSS400 Series

DISPLAY 7-SEG 0.4" SGL RED 10SMD

Part	Common Pin	Current - Test	Millicandela Rating	Number of Characters [custom]	Display Type	Power Dissipation (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Color	Package / Case	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size [custom]
QT Brightek (QTB) QBSS400R	Common Anode	20 mA	20 mcd	1	7-Segment	70 mW	0.124 in	9.25 mm	0.512 in	0.364 in	3.15 mm	13 mm	Red	10-SMD, No Lead	2 V	10.16 mm	0.4 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.79
	Digi-Reel®	1	$ 2.79
	Tape & Reel (TR)	100	$ 1.43
		500	$ 1.29
		1000	$ 1.11
		2500	$ 1.05
		5000	$ 1.03

Description

General part information

QBSS400 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.512" H x 0.364" W x 0.124" D (13.00mm x 9.25mm x 3.15mm) 10-SMD, No Lead
