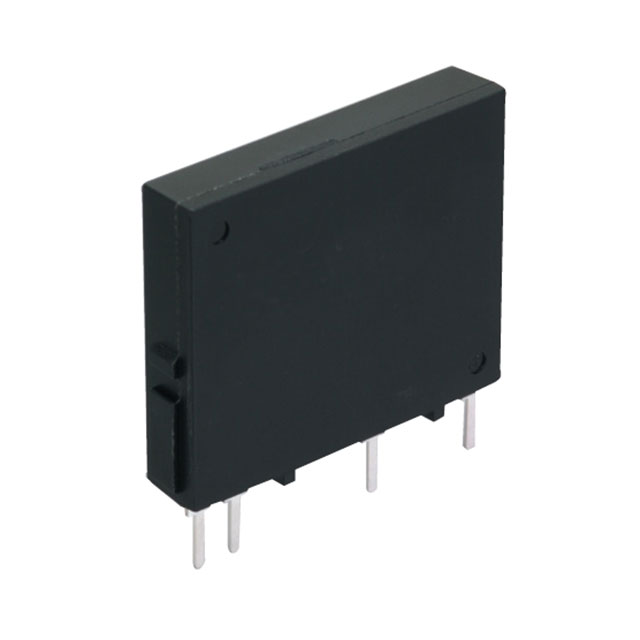

AQZ202G
ActivePanasonic Electric Works
SSR RELAY SPST-NO 6A 0-60V
Deep-Dive with AI
Search across all available documentation for this part.
AQZ202G
ActivePanasonic Electric Works
SSR RELAY SPST-NO 6A 0-60V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AQZ202G |
|---|---|
| Approval Agency | VDE, UR |
| Load Current | 6 A |
| Mounting Type | Through Hole |
| On-State Resistance (Max) [Max] | 30 mOhms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIL |
| Termination Style | PC Pin |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 19.36 | |
| 10 | $ 17.21 | |||
| 25 | $ 16.35 | |||
| 50 | $ 15.49 | |||
| 100 | $ 14.63 | |||
| 250 | $ 13.34 | |||
| 500 | $ 12.48 | |||
Description
General part information
AQZ202 Series
Solid State SPST-NO (1 Form A) 4-SIP
Documents
Technical documentation and resources
No documents available
