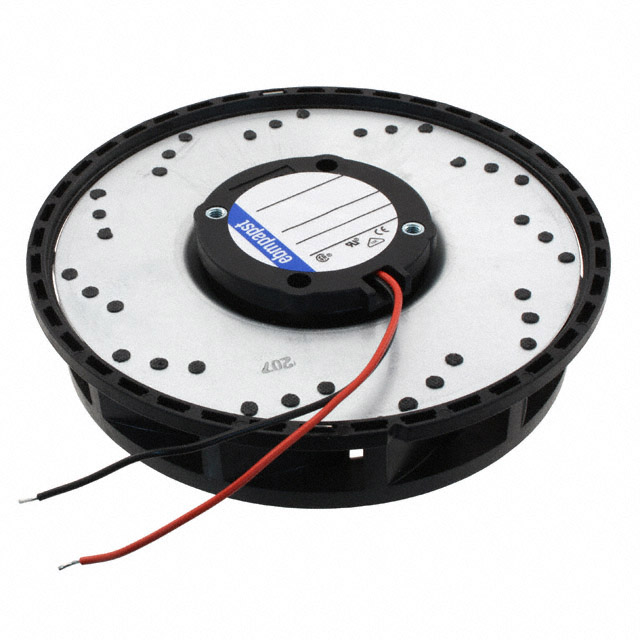

RER125-19/12N

Active

ebm-papst Inc.

FAN IMP MTRZD 138X35MM 12VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 138X35MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RER125-19/12N

Air Flow	1.81 mł/min
Air Flow	64.7 CFM
Bearing Type	Ball
Fan Type	Motorized Impellers
Lifetime @ Temp.	62500 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Noise	47 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-30 ░C
Operating Temperature [Min]	-30 °C
Power (Watts)	4.5 W
RPM	2650 RPM
Size / Dimension	Round
Size / Dimension [diameter]	138 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	7 V
Weight	319.78 g
Weight	0.705 lb
Width [y]	35 mm

Part	Approval Agency	Voltage - Rated	Noise	Size / Dimension [diameter]	Size / Dimension	Termination	RPM	Power (Watts)	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Material - Blade	Bearing Type	Air Flow	Air Flow	Fan Type	Lifetime @ Temp.	Width [y]	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Min]	Voltage Range [Max]
ebm-papst Inc. RER125-19/06	CE CSA UL VDE	115 VAC	65 dB	138 mm	Round	2 Wire Leads	2850 RPM	18 W	-30 °C	-22 °F	70 °C	158 °F	Plastic Fiberglass Reinforced	Ball	67.7 CFM	1.9 m³/min	Motorized Impellers	40000 Hrs	40 mm	499 g	1.1 lbs
ebm-papst Inc. RER125-19/56	CE CSA UL VDE	230 VAC	65 dB	138 mm	Round	2 Wire Leads	2600 RPM	19 W					Plastic Fiberglass Reinforced	Ball	61.2 CFM	1.71 m³/min	Motorized Impellers	40 °C 37500 Hrs	40 mm	499 g	1.1 lbs	60 °C	-30 ░C	-30 °C	60 °C
ebm-papst Inc. RER125-19/12N		12 VDC	47 dB	138 mm	Round	2 Wire Leads	2650 RPM	4.5 W					Plastic Fiberglass Reinforced	Ball	64.7 CFM	1.81 mł/min	Motorized Impellers	62500 Hrs	35 mm	319.78 g	0.705 lb	75 ░C	-30 ░C	-30 °C	75 °C	7 V	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 12VDC Round - 138mm Dia Ball 64.7 CFM (1.81mł/min) 2 Wire Leads
