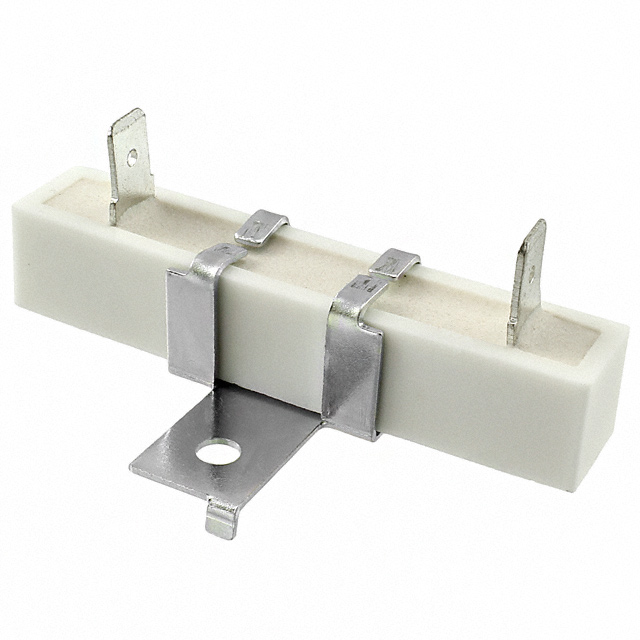

WPRT20AB-68RJB270

Unknown

TT Electronics/Welwyn

RES CHAS MNT 68 OHM 5% 20W

Search across all available documentation for this part.

Unknown

TT Electronics/Welwyn

RES CHAS MNT 68 OHM 5% 20W

Technical Specifications

Parameters and characteristics commom to parts in this series

RES CHAS MNT 68 OHM 5% 20W

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Composition	Qualification	Resistance	Lead Style	Lead Style	Lead Style	Tolerance	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Package / Case	Coating, Housing Type	Mounting Feature	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
TT Electronics/Welwyn WPRT20AB-68RJB270	22 mm	0.866 in	Wirewound	AEC-Q200	68 Ohms	0.25 in	6.35 mm	Quick Connects	5 %	Flame Proof, Safety	20 W	155 °C	-55 °C	Automotive	Radial, Rectangular Case	Ceramic	Brackets	350 ppm/°C	63 mm	0.492 "	2.48 "	12.5 mm
TT Electronics/Welwyn WPRT20AB-6R8JB270	22 mm	0.866 in	Wirewound	AEC-Q200	6.8 Ohms	0.25 in	6.35 mm	Quick Connects	5 %	Flame Proof, Safety	20 W	155 °C	-55 °C	Automotive	Radial, Rectangular Case	Ceramic	Brackets	400 ppm/°C	63 mm	0.492 "	2.48 "	12.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 Ohms ±5% 20W Wirewound Chassis Mount Resistor
