General part information

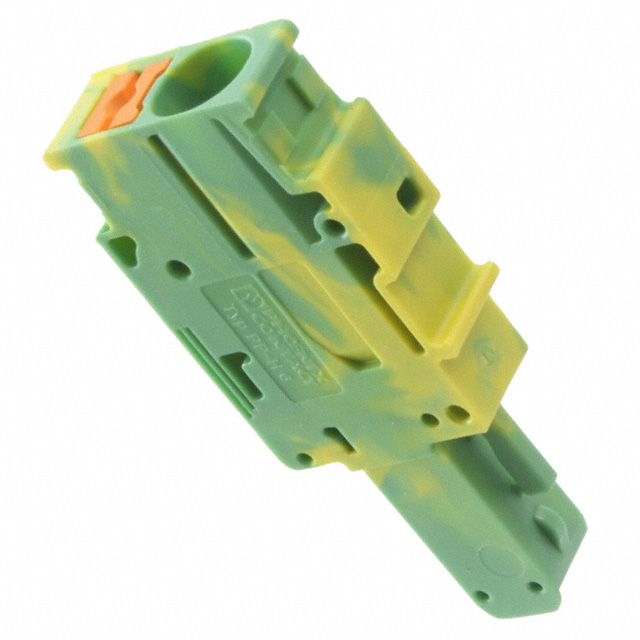

DIN Rail Terminal Blocks PP-H 6/ 1 GNYE
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 3061567 | PP-H Series |
|---|---|---|
| Color | Green, Yellow | Gray, Green, Yellow |
| Current - IEC | 41 A | 41 A |
| Current - UL | 40 A | 40 A |
| Features | Interlocking (Side) | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | 1.941 in | 1.941 in |
| Insulation Height | 49.3 mm | 49.3 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 1 | 1 - 9 |
| Positions Per Level | 1 | 1 - 9 |
| Termination Style | Screwless - Push-In Spring | Screwless - Push-In Spring |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - IEC | 1 kV | 1 kV |
| Wire Gauge or Range - AWG [Max] | 20 AWG | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 8 AWG | 8 AWG |
| Wire Gauge or Range - mm² [Max] | 10 mm² | 10 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² | 0.5 mm² |
| Wire Strip Length | 12 mm | 12 mm |
DIN Rail Terminal Blocks PP-H 6/ 1 GNYE
| Part | Termination Style | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Wire Strip Length | Voltage - IEC | Material Flammability Rating | Number of Positions | Positions Per Level | Number of Levels | Type | Current - UL | Current - IEC | Color | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Housing Material | Insulation Height | Insulation Height | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3061648 | Screwless - Push-In Spring | 10 mm² | 0.5 mm² | 12 mm | 1 kV | UL94 V-0 | 9 | 9 | 1 | Plug, Female Sockets | 40 A | 41 A | Gray | 8 AWG | 20 AWG | Polyamide (PA), Nylon | 1.941 in | 49.3 mm | Interlocking (Side) | Free Hanging (In-Line) |
Phoenix Contact 3061567 | Screwless - Push-In Spring | 10 mm² | 0.5 mm² | 12 mm | 1 kV | UL94 V-0 | 1 | 1 | 1 | Plug, Female Sockets | 40 A | 41 A | Green, Yellow | 8 AWG | 20 AWG | Polyamide (PA), Nylon | 1.941 in | 49.3 mm | Interlocking (Side) | Free Hanging (In-Line) |
