100R17-102B

Active

Parlex USA LLC

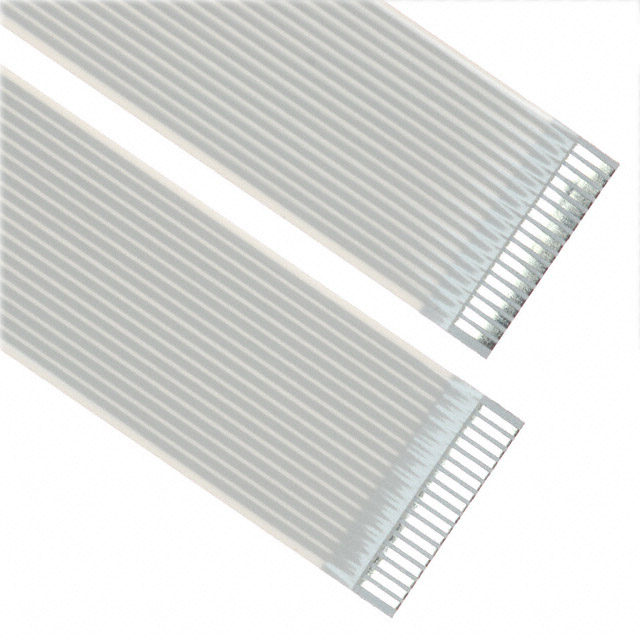

CABLE FFC/FPC 17POS 1MM 4"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 17POS 1MM 4"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R17-102B	100R17 Series

Cable Type	FPC, FFC	FPC, FFC
Length	4 in	2 - 18 in
Length	101.6 mm	50.8 - 457.2 mm
Length	-	5.984 - 12 in
Length	-	152 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	17	17
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 17POS 1MM 5"

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Pitch [x]	Pitch [x]	Termination Style	Length	Length	Cable Type	Length [x]	Length [x]
Parlex USA LLC 100R17-127B	0.14 in	3.56 mm	17	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	5 in	127 mm	FFC, FPC
Parlex USA LLC 100R17-305B	0.14 in	3.56 mm	17	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides		304.8 mm	FFC, FPC	12 in
Parlex USA LLC 100R17-76B	0.14 in	3.56 mm	17	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	3 in	76.2 mm	FFC, FPC
Parlex USA LLC 100R17-457B	0.14 in	3.56 mm	17	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	18 "	457.2 mm	FFC, FPC
Parlex USA LLC 100R17-152B	0.14 in	3.56 mm	17	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides			FFC, FPC	5.984 in	152 mm
Parlex USA LLC 100R17-254B	0.14 in	3.56 mm	17	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides		254 mm	FFC, FPC	10 in
Parlex USA LLC 100R17-102B	0.14 in	3.56 mm	17	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	4 in	101.6 mm	FFC, FPC
Parlex USA LLC 100R17-51B	0.14 in	3.56 mm	17	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	2 in	50.8 mm	FFC, FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.50

General part information

17 Position FFC, FPC Cable 0.039" (1.00mm) 4.000" (101.60mm)
