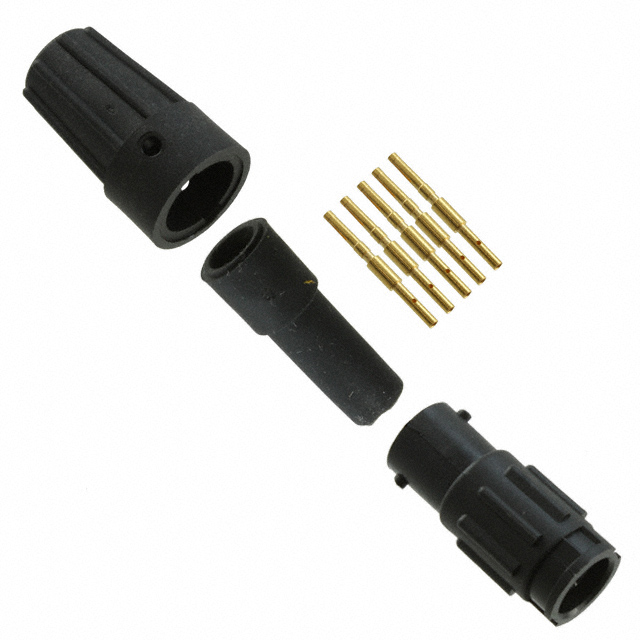

18980-5SG-522

Active

Conxall/Switchcraft

CONN RCPT FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	18980-5SG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN RCPT FMALE 5POS GOLD CRIMP

Part	Termination	Applications	Shielding	Color	Connector Type	Features	Fastening Type	Current Rating (Amps)	Material Flammability Rating	Primary Material	Mounting Type	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish - Mating	Orientation	Contact Material
Conxall/Switchcraft 18980-5SG-522	Crimp	Data, Industrial, Instrumentation, Medical	Unshielded	Black	Receptacle, Female Sockets	Backshell	Bayonet Lock	4 A	UL94 HB	Plastic	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	5.84 mm	0.22 in	5.59 mm	0.23 in	Thermoplastic	85 °C	-40 °C	600 VAC	Gold	B	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.79

General part information

5 Position Circular Connector Receptacle, Female Sockets Crimp
