W66AP6NBHAHJ TR
ActiveWinbond Electronics
IC DRAM 1GBIT LVSTL 100VFBGA
Deep-Dive with AI
Search across all available documentation for this part.
W66AP6NBHAHJ TR
ActiveWinbond Electronics
IC DRAM 1GBIT LVSTL 100VFBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W66AP6NBHAHJ TR | W66AP6 Series |
|---|---|---|
| Access Time | 3.6 ns | 3.6 ns |
| Clock Frequency | 2.133 GHz | 1.6 - 2.133 GHz |
| Memory Format | DRAM | DRAM |
| Memory Organization | 64 M | 64 M |
| Memory Size | 1 Mbit | 1 Mbit |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 °C | 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

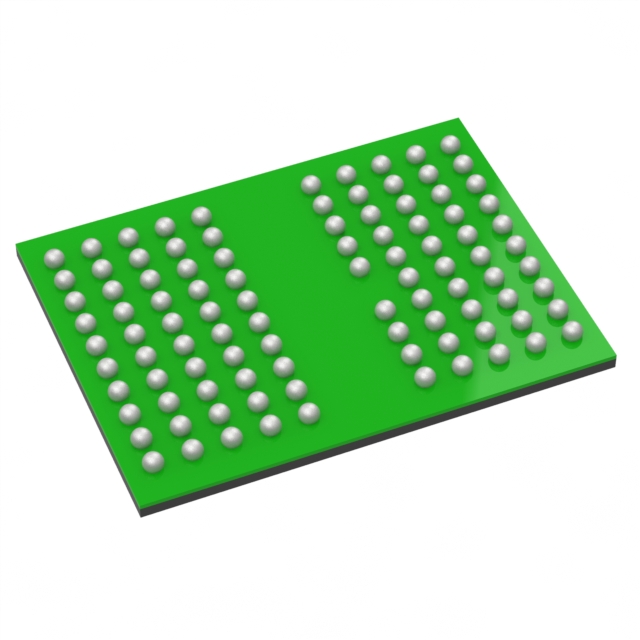

| Package / Case | 100-VFBGA | 200-WFBGA, 100-VFBGA |
| Supplier Device Package | 100-VFBGA | 200-WFBGA (10x14.5), 100-VFBGA |
| Supplier Device Package [x] | 10 | 10 |
| Supplier Device Package [y] | 7.5 | 7.5 |
| Technology | SDRAM - Mobile LPDDR4 | SDRAM - Mobile LPDDR4 |
| Voltage - Supply [Max] | 1.95 V, 1.17 V | 1.17 - 1.95 V |
| Voltage - Supply [Min] | 1.06 V, 1.7 V | 1.06 - 1.7 V |
| Write Cycle Time - Word, Page | 18 ns | 18 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 2.95 | |
W66AP6 Series
IC DRAM 1GBIT LVSTL 200WFBGA
| Part | Access Time | Memory Organization | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Write Cycle Time - Word, Page | Memory Size | Memory Format | Technology | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Mounting Type | Clock Frequency | Memory Type | Supplier Device Package [x] | Supplier Device Package [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Winbond Electronics W66AP6NBUAFJ | 3.6 ns | 64 M | 105 °C | -40 °C | 200-WFBGA (10x14.5) | 18 ns | 1 Mbit | DRAM | SDRAM - Mobile LPDDR4 | 1.06 V, 1.7 V | 1.17 V, 1.95 V | 200-WFBGA | Surface Mount | 1.6 GHz | Volatile | ||
Winbond Electronics W66AP6NBHAHJ TR | 3.6 ns | 64 M | 105 °C | -40 °C | 100-VFBGA | 18 ns | 1 Mbit | DRAM | SDRAM - Mobile LPDDR4 | 1.06 V, 1.7 V | 1.17 V, 1.95 V | 100-VFBGA | Surface Mount | 2.133 GHz | Volatile | 10 | 7.5 |
Description
General part information
W66AP6 Series
SDRAM - Mobile LPDDR4 Memory IC 1Gbit LVSTL_11 2.133 GHz 3.6 ns 100-VFBGA (10x7.5)
Documents
Technical documentation and resources
No documents available
