RSF76H100RN

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	RSF76H100RN

Current	1 A
Material - Housing & Prism	Polyphenylene Sulphide (PPS)
Minimum Liquid Specific Gravity [Min]	0.85
Mounting Type	M16x2 Thread, Panel Mount
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-10 °C
Output Configuration	SPST-NC/NO
Switch Actuation Level	0.945 in
Switch Actuation Level	24 mm
Type	Liquid
Voltage Rating	300 VDC, 300 VAC

Part	Material - Housing & Prism	Type	Mounting Type	Switch Actuation Level	Switch Actuation Level	Operating Temperature [Min]	Operating Temperature [Max]	Minimum Liquid Specific Gravity [Min]	Voltage Rating	Output Configuration	Current
Sensata Technologies RSF76YNP	Polyphenylene Sulphide (PPS)	Liquid	M16x2 Thread Panel Mount	0.945 in	24 mm	-10 °C	120 °C	0.85	120 VDC 240 VAC	SPST-NC/NO	600 mA
Sensata Technologies RSF76H100RN	Polyphenylene Sulphide (PPS)	Liquid	M16x2 Thread Panel Mount	0.945 in	24 mm	-10 °C	120 °C	0.85	300 VDC 300 VAC	SPST-NC/NO	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

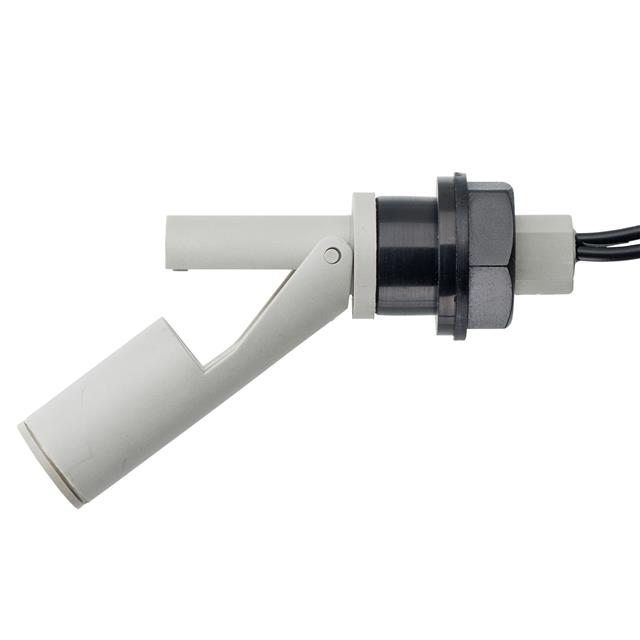

Liquid Level Sensor Switch (Single Float) SPST-NC/NO Output Panel Mount, M16x2 Thread
