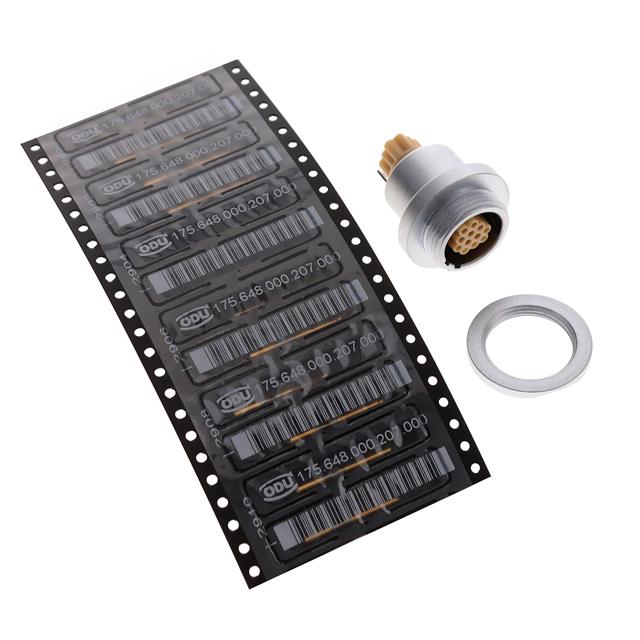

GA2LAC-P12NFG2-000L
ActiveODU
PANEL RECEPTACLE, STY GA, SER L,
Deep-Dive with AI
DocumentsIEC 60601-1 MINI-SNAP Features
Technical Specifications
Parameters and characteristics for this part
| Specification | GA2LAC-P12NFG2-000L |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Push-Pull |
| Features | Medical (IEC 60601 (2 MOOP/2 MOPP)) |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 12 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 2 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 126.89 | |
| 10 | $ 98.92 | |||
| 25 | $ 90.07 | |||
| 50 | $ 84.11 | |||
| 100 | $ 78.72 | |||
Description
General part information
GA2LAC-P Series
12 Position Circular Connector Receptacle, Female Sockets Crimp
