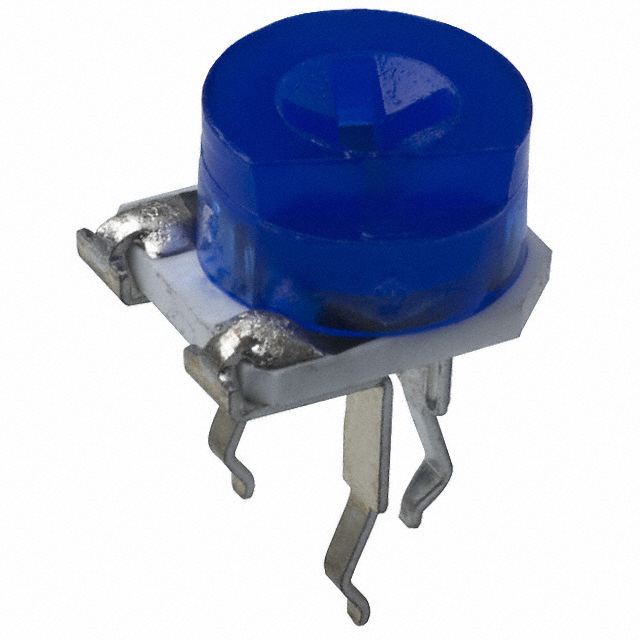

3306P-1-201

Active

Bourns Inc.

TRIMMER 200 OHM 0.2W PC PIN TOP

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 200 OHM 0.2W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Resistive Material	Adjustment Type	Number of Turns	Mounting Type	Termination Style	Temperature Coefficient	Power (Watts)	Power (Watts)
Bourns Inc. 3306P-1-204	25 %	6.8 mm	8.1 mm	0.268 in	0.319 "	200000 Ohms	Cermet	Top Adjustment	1	Through Hole	PC Pins	250 ppm/°C	0.2 W	1/5
Bourns Inc. 3306P-1-503	25 %	6.8 mm	8.1 mm	0.268 in	0.319 "	50 kOhms	Cermet	Top Adjustment	1	Through Hole	PC Pins	250 ppm/°C	0.2 W	1/5
Bourns Inc. 3306P-1-202	25 %	6.8 mm	8.1 mm	0.268 in	0.319 "	2 kOhms	Cermet	Top Adjustment	1	Through Hole	PC Pins	250 ppm/°C	0.2 W	1/5
Bourns Inc. 3306P-1-102	25 %	6.8 mm	8.1 mm	0.268 in	0.319 "	1000 Ohms	Cermet	Top Adjustment	1	Through Hole	PC Pins	250 ppm/°C	0.2 W	1/5
Bourns Inc. 3306P-1-501	25 %	6.8 mm	8.1 mm	0.268 in	0.319 "	500 Ohms	Cermet	Top Adjustment	1	Through Hole	PC Pins	250 ppm/°C	0.2 W	1/5
Bourns Inc. 3306P-1-103	25 %	6.8 mm	8.1 mm	0.268 in	0.319 "	10000 Ohms	Cermet	Top Adjustment	1	Through Hole	PC Pins	250 ppm/°C	0.2 W	1/5
Bourns Inc. 3306P-1-201	25 %	6.8 mm	8.1 mm	0.268 in	0.319 "	200 Ohms	Cermet	Top Adjustment	1	Through Hole	PC Pins	250 ppm/°C	0.2 W	1/5
Bourns Inc. 3306P-1-504	25 %	6.8 mm	8.1 mm	0.268 in	0.319 "		Cermet	Top Adjustment	1	Through Hole	PC Pins	250 ppm/°C	0.2 W	1/5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

200 Ohms 0.2W, 1/5W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
