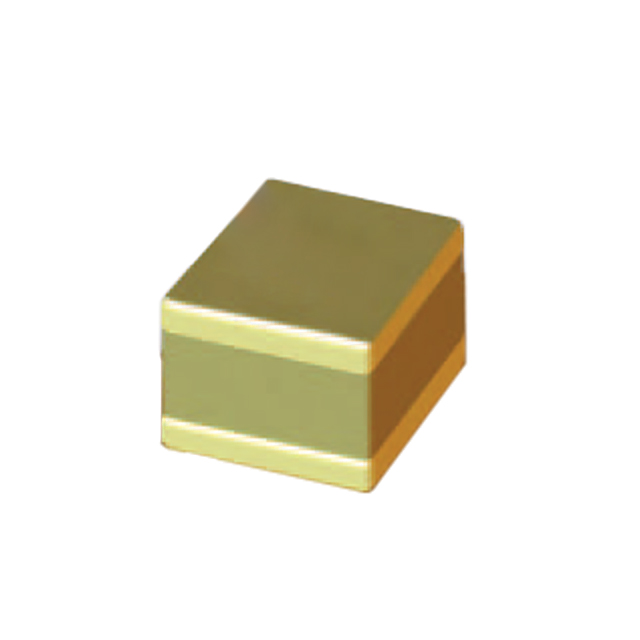

V30BZ102M6SX

Active

Knowles Dielectric Labs

CAP CER 1000PF 200V X7R 0303

Search across all available documentation for this part.

Active

Knowles Dielectric Labs

CAP CER 1000PF 200V X7R 0303

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 pF ±20% 200V Ceramic Capacitor X7R 0303 (0808 Metric)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	V30BZ102M6SX	V30BZ Series

Applications	RF, High Frequency, Bypass, Microwave, Decoupling	RF, High Frequency, Bypass, Microwave, Decoupling
Capacitance	0.001 µF	0.001 - 6800 pF
Features	Single Layer, Epoxy Mountable	Single Layer, Epoxy Mountable
Mounting Type	SLCC, Epoxy, Surface Mount	SLCC, Epoxy, Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0303 (0808 Metric)	0303 (0808 Metric)
Size / Dimension [x]	0.76 mm	0.76 mm
Size / Dimension [x]	0.03 "	0.03 "
Size / Dimension [y]	0.76 mm	0.76 mm
Size / Dimension [y]	0.03 "	0.03 "
Temperature Coefficient	X7R	X7R
Thickness (Max) [Max]	0.64 mm	0.64 mm
Thickness (Max) [Max]	0.025 in	0.025 in
Tolerance	20 %	20 %
Voltage - Rated	200 V	100 - 200 V

CAP CER 6800PF 100V X7R NONS SMD

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Package / Case	Applications	Voltage - Rated	Features	Tolerance	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]
Knowles Dielectric Labs V30BZ682M1SX	Epoxy, SLCC, Surface Mount	-55 °C	125 °C	0.76 mm	0.76 mm	0.03 "	0.03 "	X7R	0303 (0808 Metric)	Bypass, Decoupling, High Frequency, Microwave, RF	100 V	Epoxy Mountable, Single Layer	20 %	6800 pF	0.64 mm	0.025 in
Knowles Dielectric Labs V30BZ102M6SX	Epoxy, SLCC, Surface Mount	-55 °C	125 °C	0.76 mm	0.76 mm	0.03 "	0.03 "	X7R	0303 (0808 Metric)	Bypass, Decoupling, High Frequency, Microwave, RF	200 V	Epoxy Mountable, Single Layer	20 %	0.001 µF	0.64 mm	0.025 in
Knowles Dielectric Labs V30BZ472M1SX	Epoxy, SLCC, Surface Mount	-55 °C	125 °C	0.76 mm	0.76 mm	0.03 "	0.03 "	X7R	0303 (0808 Metric)	Bypass, Decoupling, High Frequency, Microwave, RF	100 V	Epoxy Mountable, Single Layer	20 %	4700 pF	0.64 mm	0.025 in
