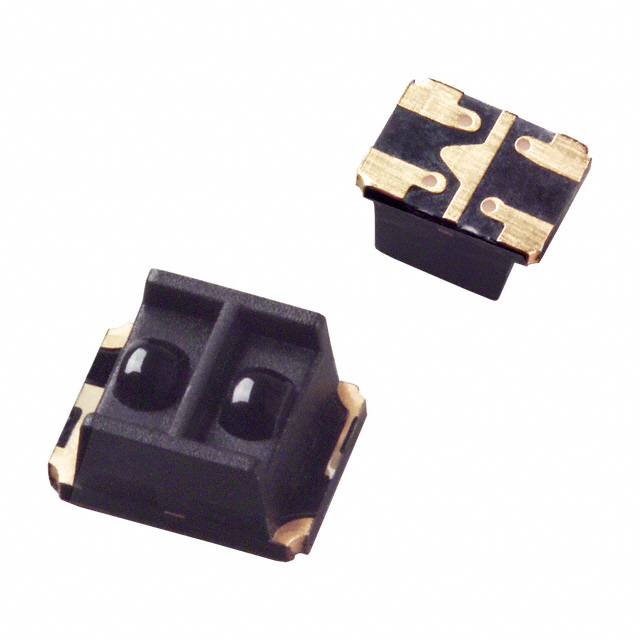

GP2S700HCP

Active

SHARP/Socle Technology

PHOTOINTERRUPTER REFLEC 3MM SMD

Search across all available documentation for this part.

Active

SHARP/Socle Technology

PHOTOINTERRUPTER REFLEC 3MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	GP2S700HCP

Current - Collector (Ic) (Max) [Max]	20 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	4-SMD
Response Time	20 µs
Sensing Distance	5.5 mm
Sensing Distance	0.217 "
Sensing Method	Reflective
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V

PHOTOINTERRUPTER REFLEC 3MM SMD

Part	Current - DC Forward (If) (Max)	Sensing Method	Package / Case	Response Time	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]
SHARP/Socle Technology GP2S700HCP	50 mA	Reflective	4-SMD	20 µs	5.5 mm	0.217 "	-25 °C	85 °C	Surface Mount	35 V	20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 0.217" (5.5mm) 4-SMD

Technical documentation and resources

No documents available
