031-4326

Active

Amphenol RF

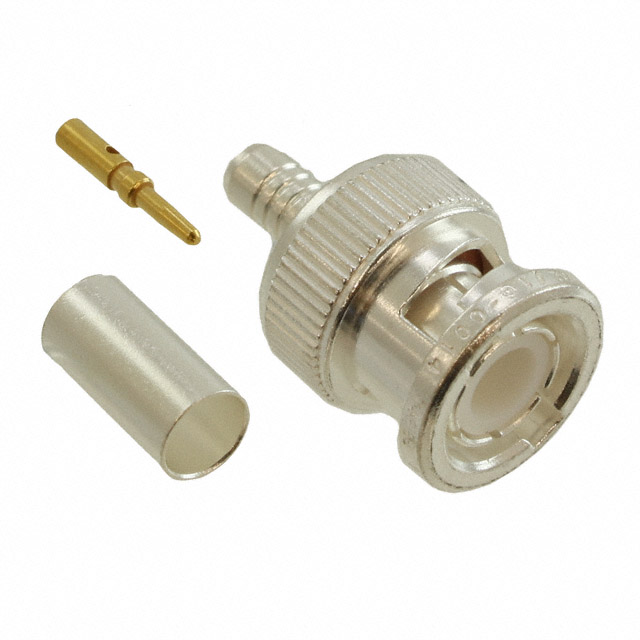

CONN BNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-4326

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-4326

Body Finish	Silver
Body Material	Brass
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

031-43 Series

Part	Mating Cycles	Insertion Loss	Center Contact Plating	Fastening Type	Voltage Rating	Frequency - Max [Max]	Impedance	Connector Style	Connector Type	Shield Termination	Contact Termination	Body Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Center Contact Material	Number of Ports	Body Finish	Mounting Type	Dielectric Material	Includes	Cable Group
Amphenol RF 031-4328	500	0.2 dB	Gold	Bayonet Lock	500 V	4 GHz	50 Ohms	BNC	Female Socket Jack	Crimp	Crimp Solder	Brass	Silver	-65 ░C	165 °C	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Phosphor Bronze	1	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)
Amphenol RF 031-4321	500	0.2 dB	Gold	Bayonet Lock	500 V	4 GHz	50 Ohms	BNC	Male Pin Plug	Crimp	Crimp Solder	Brass	Silver	-65 ░C	165 °C	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Brass	1	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule
Amphenol RF 031-4327	500	0.2 dB	Gold	Bayonet Lock	500 V	4 GHz	50 Ohms	BNC	Female Socket Jack	Crimp	Crimp Solder	Brass	Silver	-65 ░C	165 °C	141 58C 7806A Belden 89907 RG-58	Phosphor Bronze	1	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)
Amphenol RF 031-4384	500	0.2 dB	Gold	Bayonet Lock	500 V	4 GHz	50 Ohms	BNC	Male Pin Plug	Crimp	Solder	Brass	Silver	-65 ░C	165 °C		Brass	1	Nickel	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)
Amphenol RF 031-4326	500	0.2 dB	Gold	Bayonet Lock	500 V	4 GHz	50 Ohms	BNC	Male Pin Plug	Crimp	Crimp	Brass	Silver	-65 ░C	165 °C	RG-55	Brass	1	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule	142 223 400

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.34
		10	$ 8.41
		25	$ 7.92
		50	$ 7.72
		100	$ 7.52
		300	$ 6.70
		500	$ 6.30
		1000	$ 5.57

Description

General part information

031-43 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
