NKE1205SC

Active

Murata Power Solutions Inc.

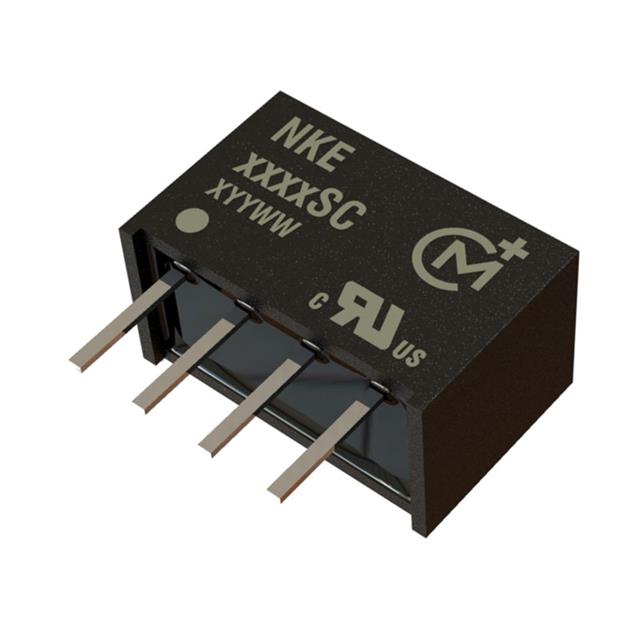

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

NKE1205SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NKE1205SC	NKE12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	200 mA	66 - 200 mA
Efficiency	72 %	72 - 81 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	4-SIP Module	8-DIP Module, 4-SIP Module
Package / Case	-	4 Lead
Size / Dimension [x]	11.5 mm	11.5 mm
Size / Dimension [x]	0.45 in	0.45 in
Size / Dimension [y]	6 mm	6 - 9.8 mm
Size / Dimension [y]	0.24 "	0.24 - 0.39 "
Size / Dimension [z]	7.5 mm	5.4 - 7.5 mm
Size / Dimension [z]	0.29 "	0.21 - 0.29 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	13.2 V
Voltage - Input (Min) [Min]	10.8 V	10.8 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 - 15 V

NKE12 Series

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Part	Current - Output (Max) [Max]	Number of Outputs	Applications	Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Package / Case	Package / Case	Voltage - Input (Min) [Min]	Efficiency
Murata Power Solutions Inc. NKE1205DC	200 mA	1	ITE (Commercial)	Isolated Module	5 V	11.5 mm	9.8 mm	0.39 "	0.21 in	5.4 mm	0.45 in	13.2 V	85 °C	-40 °C	Through Hole	3000 V	8-DIP Module	4 Lead	10.8 V	72 %
Murata Power Solutions Inc. NKE1212SC	83 mA	1	ITE (Commercial)	Isolated Module	12 V	11.5 mm	6 mm	0.24 "	0.29 "	7.5 mm	0.45 in	13.2 V	85 °C	-40 °C	Through Hole	3000 V	4-SIP Module		10.8 V	79 %
Murata Power Solutions Inc. NKE1209SC		1	ITE (Commercial)	Isolated Module	9 V	11.5 mm	6 mm	0.24 "	0.29 "	7.5 mm	0.45 in	13.2 V	85 °C	-40 °C	Through Hole	3000 V	4-SIP Module		10.8 V	78 %
Murata Power Solutions Inc. NKE1205SC	200 mA	1	ITE (Commercial)	Isolated Module	5 V	11.5 mm	6 mm	0.24 "	0.29 "	7.5 mm	0.45 in	13.2 V	85 °C	-40 °C	Through Hole	3000 V	4-SIP Module		10.8 V	72 %
Murata Power Solutions Inc. NKE1212DC	83 mA	1	ITE (Commercial)	Isolated Module	12 V	11.5 mm	9.8 mm	0.39 "	0.21 in	5.4 mm	0.45 in	13.2 V	85 °C	-40 °C	Through Hole	3000 V	8-DIP Module	4 Lead	10.8 V	79 %
Murata Power Solutions Inc. NKE1215SC	66 mA	1	ITE (Commercial)	Isolated Module	15 V	11.5 mm	6 mm	0.24 "	0.29 "	7.5 mm	0.45 in	13.2 V	85 °C	-40 °C	Through Hole	3000 V	4-SIP Module		10.8 V	81 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.61
		5	$ 7.57
		10	$ 7.52
		25	$ 7.43
		50	$ 7.25
		100	$ 6.89
		250	$ 6.45
		500	$ 6.01
		1000	$ 5.63
Newark	Each	25	$ 8.20
		50	$ 8.01
		100	$ 7.63

Description

General part information

NKE12 Series

The NKE series DC/DC Converter particularly suited to isolating and/or converting DC power rails. An improved efficiency, lower output ripple and 3kVDC isolation capability through state of the art improved technology. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees start-up from -40°C and full 1W output at 85°C.
