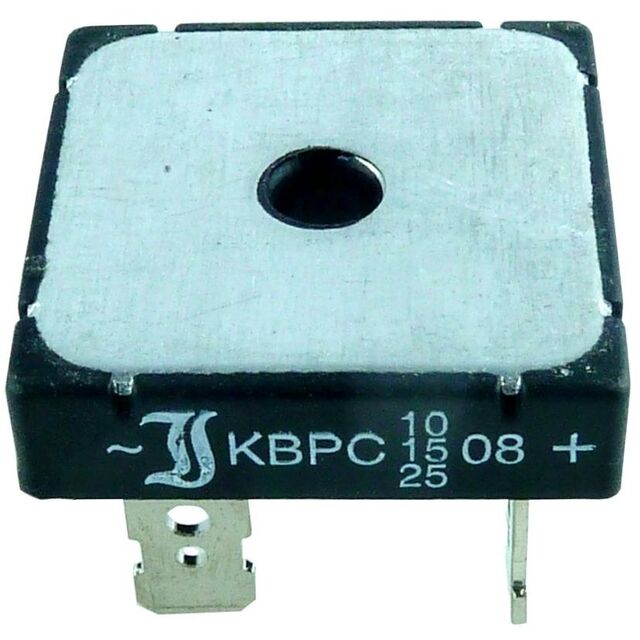

KBPC10/15/2502WP

Active

Diotec Semiconductor

BRIDGE RECT 1P 200V 25A KBPC WP

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1P 200V 25A KBPC WP

Technical Specifications

Parameters and characteristics for this part

Specification	KBPC10/15/2502WP

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	4-Square, KBPC WP
Supplier Device Package	KBPC WP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.2 V
Voltage - Peak Reverse (Max) [Max]	200 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - Peak Reverse (Max)	Mounting Type	Package / Case	Diode Type	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]
Diotec Semiconductor KBPC10/15/2516FP	150 °C	-50 °C	Standard	10 µA	KBPC FP	1.6 kV	Chassis Mount	4-Square KBPC FP	Single Phase	1.2 V	25 A
Diotec Semiconductor KBPC10/15/2510WP	150 °C	-50 °C	Standard	10 çA	KBPC WP		Through Hole	4-Square KBPC WP	Single Phase	1.2 V	25 A	1000 V
Diotec Semiconductor KBPC10/15/2504WP	150 °C	-50 °C	Standard	10 µA	KBPC WP		Through Hole	4-Square KBPC WP	Single Phase	1.2 V	25 A	400 V
Diotec Semiconductor KBPC10/15/2500WP	150 °C	-50 °C	Standard	10 µA	KBPC WP		Through Hole	4-Square KBPC WP	Single Phase	1.2 V	25 A	50 V
Diotec Semiconductor KBPC10/15/2502WP	150 °C	-50 °C	Standard	10 µA	KBPC WP		Through Hole	4-Square KBPC WP	Single Phase	1.2 V	25 A	200 V
Diotec Semiconductor KBPC10/15/2514WP	150 °C	-50 °C	Standard	10 µA	KBPC WP		Through Hole	4-Square KBPC WP	Single Phase	1.2 V	25 A	1.4 kV
Diotec Semiconductor KBPC10/15/2512WP	150 °C	-50 °C	Standard	10 µA	KBPC WP		Through Hole	4-Square KBPC WP	Single Phase	1.2 V	25 A	1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 200 V Through Hole KBPC WP
