7986LC 0101000

Active

Belden Inc.

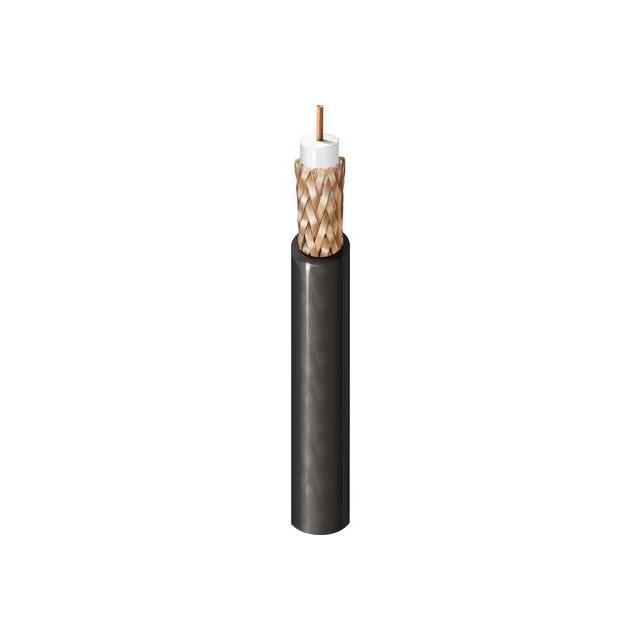

COAX RG-59 PLENUM COAX

Search across all available documentation for this part.

Active

Belden Inc.

COAX RG-59 PLENUM COAX

Technical Specifications

Parameters and characteristics for this part

Specification	7986LC 0101000

Cable Group	RG-59
Cable Type	Coaxial - Plenum
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	3.43 mm
Dielectric Diameter [diameter]	0.135 in
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	4.9 mm
Jacket (Insulation) Diameter [diameter]	0.193 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
VoP, Velocity of Propagation	84
Wire Gauge	20 AWG

Part	Shield Material	Cable Group	Shield Coverage	Wire Gauge	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Dielectric Material	Cable Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Jacket (Insulation) Material	VoP, Velocity of Propagation	Jacket Color	Impedance	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 7986LC 0101000	Copper Bare	RG-59	95 %	20 AWG	304.8 m	1000 ft	200 °C	-40 °C	Solid	Foam Fluorinated Ethylene Propylene (FFEP)	Coaxial - Plenum	3.43 mm	0.135 in	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	84	Black	75 Ohms	Braid	4.9 mm	0.193 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.59

General part information

Coaxial - Plenum Cable 20 AWG RG-59 1000.0' (304.80m) 75 Ohms
