HP75BNC9

Active

Switchcraft Inc.

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HP75BN Series

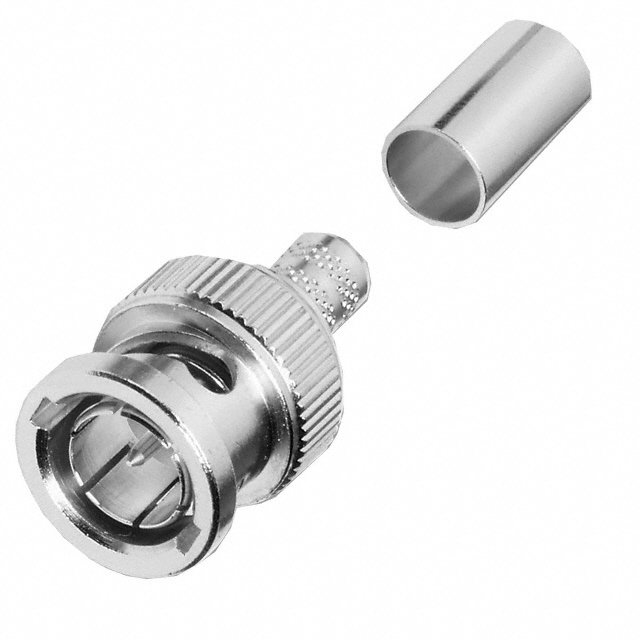

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HP75BNC9	HP75BN Series

Body Finish	Nickel	Nickel
Body Material	Copper Alloy	Copper Alloy
Cable Group	Belden 1505A	Belden 1855A, Belden 179DT, Belden 8281B, Belden 1505A, Belden 8241, Belden 1695A, Belden 1694A
Center Contact Material	Copper Alloy	Copper Alloy
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Includes	1 Connector, 1 Ferrule	1 Connector, 1 Ferrule
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

HP75BN Series

RF CONNECTORS / COAXIAL CONNECTORS 75 OHM BELDEN 1855A

Part	Shield Termination	Contact Termination	Includes	Body Finish	Fastening Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Center Contact Plating	Impedance	Body Material	Cable Group	Mounting Type	Voltage Rating	Center Contact Material	Connector Type	Number of Ports	Connector Style
Switchcraft Inc. HP75BNC12	Crimp	Crimp	1 Connector, 1 Ferrule	Nickel	Bayonet Lock	Silver	-65 ░C	165 °C	500	Gold	75 Ohms	Copper Alloy	Belden 1855A	Free Hanging (In-Line)	500 V	Copper Alloy	Male Pin, Plug	1	BNC
Switchcraft Inc. HP75BNC14X	Crimp	Crimp	1 Connector, 1 Ferrule	Nickel	Bayonet Lock	Silver	-65 ░C	165 °C	500	Gold	75 Ohms	Copper Alloy	Belden 179DT	Free Hanging (In-Line)	500 V	Copper Alloy	Male Pin, Plug	1	BNC
Switchcraft Inc. HP75BNC2X	Crimp	Crimp	1 Connector, 1 Ferrule	Nickel	Bayonet Lock	Silver	-65 ░C	165 °C	500	Gold	75 Ohms	Copper Alloy	Belden 8281B	Free Hanging (In-Line)	500 V	Copper Alloy	Male Pin, Plug	1	BNC
Switchcraft Inc. HP75BNC9	Crimp	Crimp	1 Connector, 1 Ferrule	Nickel	Bayonet Lock	Silver	-65 ░C	165 °C	500	Gold	75 Ohms	Copper Alloy	Belden 1505A	Free Hanging (In-Line)	500 V	Copper Alloy	Male Pin, Plug	1	BNC
Switchcraft Inc. HP75BNC1X	Crimp	Crimp	1 Connector, 1 Ferrule	Nickel	Bayonet Lock	Silver	-65 ░C	165 °C	500	Gold	75 Ohms	Copper Alloy	Belden 8241	Free Hanging (In-Line)	500 V	Copper Alloy	Male Pin, Plug	1	BNC
Switchcraft Inc. HP75BNC6X	Crimp	Crimp	1 Connector, 1 Ferrule	Nickel	Bayonet Lock	Silver	-65 ░C	165 °C	500	Gold	75 Ohms	Copper Alloy	Belden 1695A	Free Hanging (In-Line)	500 V	Copper Alloy	Male Pin, Plug	1	BNC
Switchcraft Inc. HP75BNC7X	Crimp	Crimp	1 Connector, 1 Ferrule	Nickel	Bayonet Lock	Silver	-65 ░C	165 °C	500	Gold	75 Ohms	Copper Alloy	Belden 1694A	Free Hanging (In-Line)	500 V	Copper Alloy	Male Pin, Plug	1	BNC
Switchcraft Inc. HP75BNC12X	Crimp	Crimp	1 Connector, 1 Ferrule	Nickel	Bayonet Lock	Silver	-65 ░C	165 °C	500	Gold	75 Ohms	Copper Alloy	Belden 1855A	Free Hanging (In-Line)	500 V	Copper Alloy	Male Pin, Plug	1	BNC
