ActiveTE Connectivity AMP Connectors

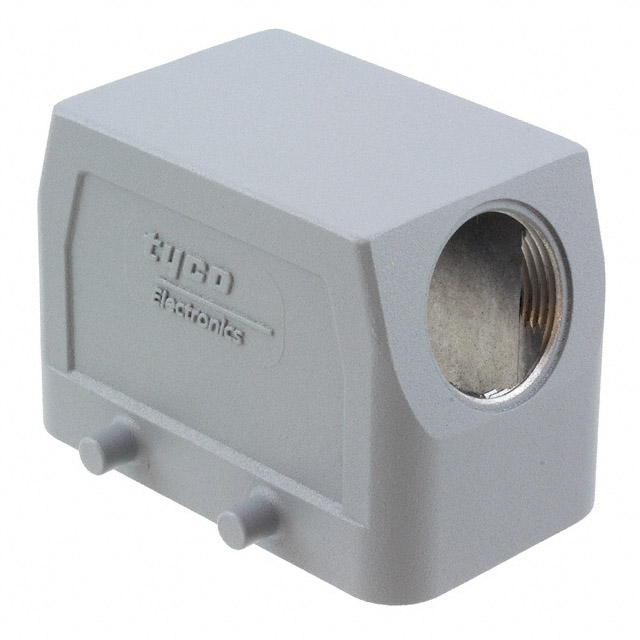

CONN HOOD SIDE ENTRY SZ4 M25
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1106430-4
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ4 M25
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1106430-4 | 1106430 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom, Locking Clip (1) on Base Bottom |
| Size | 4 | 4 |
| Size / Dimension [x] | 2.874 in | 2.874 in |
| Size / Dimension [x] | 73 mm | 73 mm |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [z] | 1.969 in | 1.969 in |
| Size / Dimension [z] | 50 mm | 50 mm |
| Style | Side Entry | Side Entry |
| Thread Size | M25 | M20, M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.50 | |
| 10 | $ 27.65 | |||
| 100 | $ 23.75 | |||
1106430 Series
CONN HOOD SIDE ENTRY SZ4 M20
| Part | Housing Material | Ingress Protection | Thread Size | Housing Color | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Connector Type | Housing Finish | Size | Style | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1106430-4 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | M20 | Gray | 2.874 in | 1.969 in | 1.693 in | 50 mm | 73 mm | 43 mm | Hood | Powder Coated | 4 | Side Entry | Locking Clip (2) on Base Bottom |
TE Connectivity AMP Connectors 1106430-5 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | M25 | Gray | 2.874 in | 1.969 in | 1.693 in | 50 mm | 73 mm | 43 mm | Hood | Powder Coated | 4 | Side Entry | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors 1106430-4 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | M25 | Gray | 2.874 in | 1.969 in | 1.693 in | 50 mm | 73 mm | 43 mm | Hood | Powder Coated | 4 | Side Entry | Locking Clip (2) on Base Bottom |
Description
General part information
1106430 Series
Hood Connector Side Entry M25 4 IP65 - Dust Tight, Water Resistant
