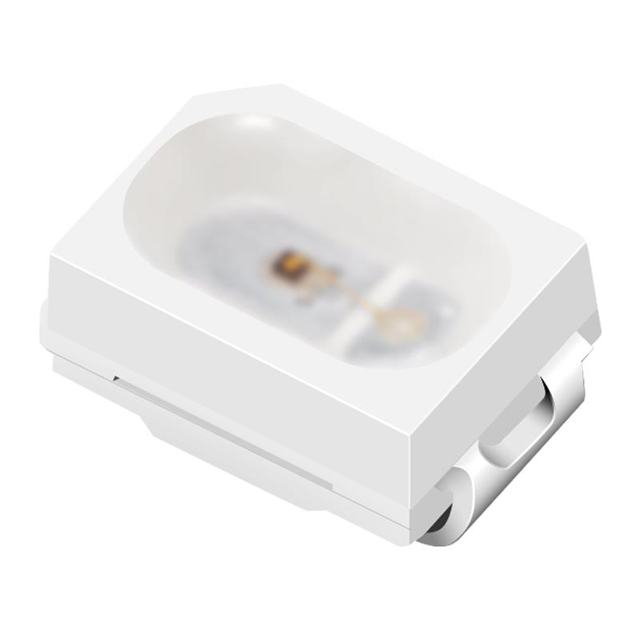

XZMDK105S
ActiveSunLED
LED RED CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMDK105S
ActiveSunLED
LED RED CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMDK105S |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.3 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.5 mm |
| Lens Size [y] | 1.5 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 89 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2.7 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Dominant | 630 nm |
| Wavelength - Peak | 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 2000 | $ 0.09 | ||
Description
General part information
XZMDK105 Series
Red 630nm LED Indication - Discrete 1.95V 2-SMD, J-Lead
