796288-1

Active

TE Connectivity AMP Connectors

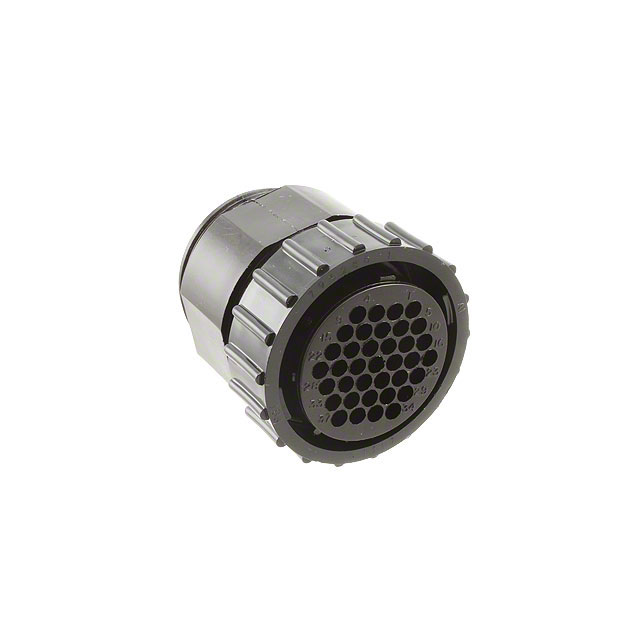

CONN PLG HSG FMALE 37POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLG HSG FMALE 37POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796288-1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	37
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert [Max]	37
Shell Size - Insert [Min]	23
Shielding	Unshielded
Type	For Female Sockets

CONN PLG HSG FMALE 37POS INLINE

Part	Contact Shape	Features	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Insert Material	Mounting Type	Material Flammability Rating	Number of Positions	Note	Ingress Protection	Housing Color	Type	Contact Size	Orientation	Contact Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type
TE Connectivity AMP Connectors 796288-1	Circular	Backshell, Coupling Nut	105 ░C	-55 °C	Unshielded	Thermoplastic	Free Hanging (In-Line)	UL94 V-0	37	Contacts Not Included	IP67 - Dust Tight, Waterproof	Black	For Female Sockets	16	Keyed	Crimp	23	37	Plug Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
