C2830A.18.10

Active

Prysmian Group

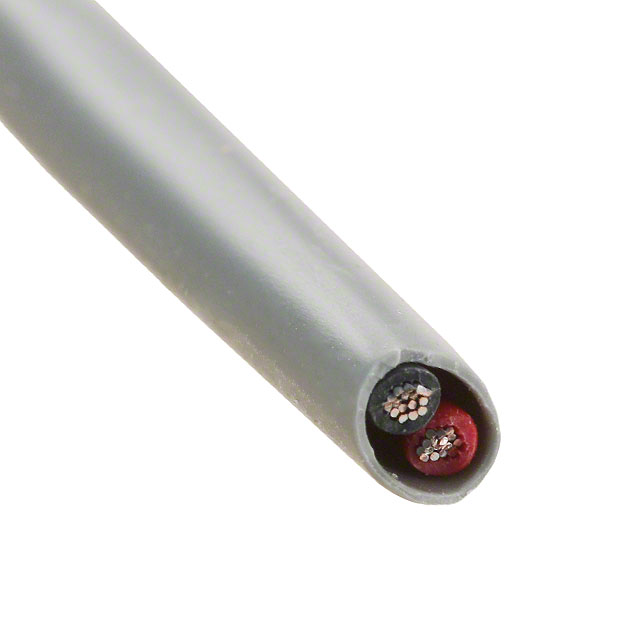

CABLE 2COND 18AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C2830A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	4.83 mm
Jacket (Insulation) Diameter [diameter]	0.19 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Ratings	Length [x]	Length [x]	Number of Conductors	Cable Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Conductor Material	Voltage	Jacket Color
Prysmian Group C2830A.18.10	ASTM B-33	500 '	152.4 m	2	Multi-Conductor	18 AWG	-20 C	80 C	0.015 in	0.381 mm	Poly-Vinyl Chloride (PVC)	16	30 AWG	Communication Control	4.83 mm	0.19 in	Poly-Vinyl Chloride (PVC)	Copper Annealed Tinned	300 V	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Gray 18 AWG 500.0' (152.4m)
