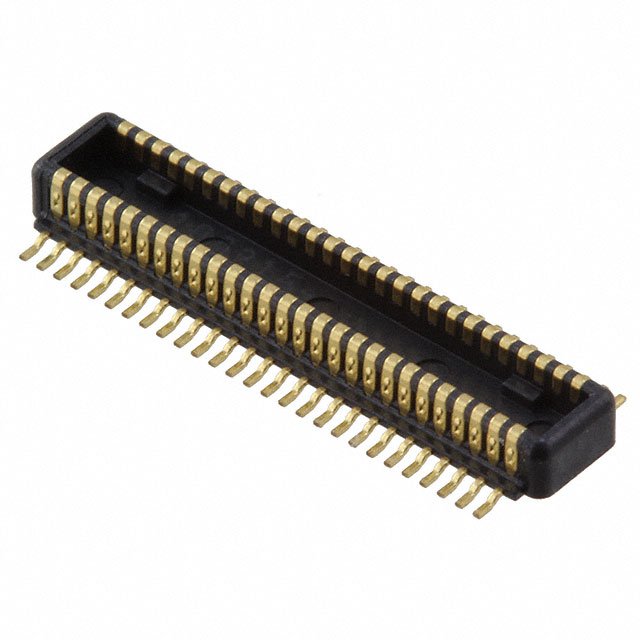

AXK854145WG

Obsolete

Panasonic Electric Works

CONN HDR 54POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 54POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK854145WG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.052 in
Height Above Board	1.32 mm
Mated Stacking Heights	1.5 mm, 2 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	54
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board	Height Above Board	Number of Positions	Connector Type	Contact Finish	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Mated Stacking Heights
Panasonic Electric Works AXK854145WG	0.052 in	1.32 mm	54	Header Outer Shroud Contacts	Gold	2	Surface Mount	0.016 in	0.4 mm	1.5 mm 2 mm 2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

54 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
