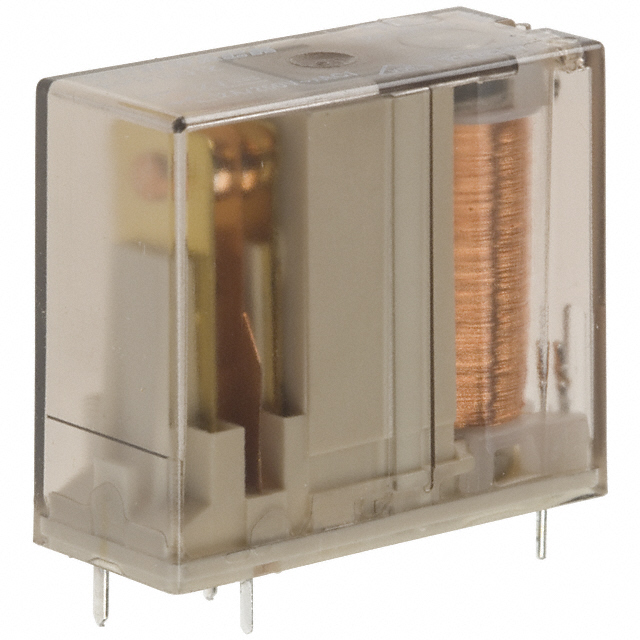

RP730012

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 12V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Type	Mounting Type	Coil Voltage	Release Time	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Termination Style	Contact Rating (Current)	Seal Rating	Switching Voltage [Max]	Contact Form	Operate Time	Approval Agency	Must Release Voltage	Load - Max Switching	Contact Material	Must Operate Voltage	Coil Resistance
TE Connectivity Potter & Brumfield Relays RP730024	Non Latching	Through Hole	24 VDC	2 ms	21.8 mA	-40 °C	70 °C	General Purpose	PC Pin	16 A	Sealed - Fully	400 VAC	SPST-NO (1 Form A)	8 ms	cURus VDE	2.4 VDC	6400 VA	Silver Cadmium Oxide (AgCdO)	16.8 VDC
TE Connectivity Potter & Brumfield Relays 8-1393231-5				2 ms		-40 °C	70 °C	General Purpose			Sealed - Fully			8 ms	cURus VDE			Silver Cadmium Oxide (AgCdO)
TE Connectivity Potter & Brumfield Relays RP730012	Non Latching	Through Hole	12 VDC	2 ms	44.4 mA	-40 °C	70 °C	General Purpose	PC Pin	16 A	Sealed - Fully	400 VAC	SPST-NO (1 Form A)	8 ms	cURus VDE	1.2 VDC	6400 VA	Silver Cadmium Oxide (AgCdO)	8.4 VDC	270 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
