LCM-S02002DSR

Active

Lumex Opto/Components Inc.

LCD MOD 40 DIG 20 X 2 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 40 DIG 20 X 2 REFLECTIVE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

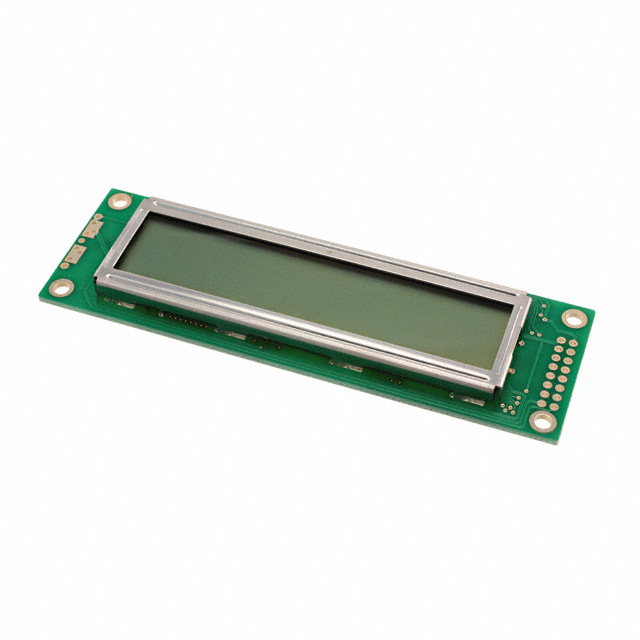

Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 116.00mm x 37.00mm x 8.90mm

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LCM-S02002DSR	LCM-S02002 Series

Background Color	Green	Green
Backlight	Without Backlight	Without Backlight, LED - Yellow
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size [y]	3.2 mm	3.2 mm
Character Size [z]	5.55 mm	5.55 mm
Display Format [x]	20	20
Display Format [y]	2	2
Display Mode	Reflective	Transflective, Reflective
Display Type	STN - Super-Twisted Nematic	TN - Twisted Nematic, STN - Super-Twisted Nematic
Dot Size [custom]	0.65 mm	0.65 mm
Dot Size [custom]	0.6 mm	0.6 mm
Interface	Parallel	Parallel
Number of Characters	40	40
Operating Temperature	-	70 °C
Operating Temperature	-	0 °C
Outline L x W x H [x]	116 mm	116 mm
Outline L x W x H [y]	37 mm	28.5 - 37 mm
Outline L x W x H [z]	8.9 mm	8.9 - 12.7 mm
Viewing Area	-	85 mm
Viewing Area	-	18.8 mm
Voltage - Supply	-	4.7 V
Voltage - Supply	-	5.3 V

LCD MOD 40DIG 20X2 TRANS YLW/GRN

Part	Number of Characters	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Display Type	Display Format [x]	Display Format [y]	Dot Size [custom]	Dot Size [custom]	Character Format [y]	Character Format [x]	Display Mode	Interface	Character Size [z]	Character Size [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Backlight	Background Color	Viewing Area [x]	Viewing Area [y]
Lumex Opto/Components Inc. LCM-S02002DTF	40	28.5 mm	12.7 mm	116 mm	TN - Twisted Nematic	20	2	0.65 mm	0.6 mm	8 Dots	5 Dots	Transflective	Parallel	5.55 mm	3.2 mm
Lumex Opto/Components Inc. LCM-S02002DSF-S5	40	37 mm	8.9 mm	116 mm		20	2	0.65 mm	0.6 mm	8 Dots	5 Dots			5.55 mm	3.2 mm	70 °C	0 °C	4.7 V	5.3 V	Without Backlight
Lumex Opto/Components Inc. LCM-S02002DSR	40	37 mm	8.9 mm	116 mm	STN - Super-Twisted Nematic	20	2	0.65 mm	0.6 mm	8 Dots	5 Dots	Reflective	Parallel	5.55 mm	3.2 mm					Without Backlight	Green
Lumex Opto/Components Inc. LCM-S02002DSF	40	37 mm	12.7 mm	116 mm	STN - Super-Twisted Nematic	20	2	0.65 mm	0.6 mm	8 Dots	5 Dots	Transflective	Parallel	5.55 mm	3.2 mm						Green
Lumex Opto/Components Inc. LCM-S02002DSM-Y	40	37 mm	12.7 mm	116 mm	STN - Super-Twisted Nematic	20	2	0.65 mm	0.6 mm	8 Dots	5 Dots	Transflective		5.55 mm	3.2 mm			4.7 V	5.3 V	LED - Yellow		85 mm	18.8 mm
