FGK.1B.304.CLLD52Z

Active

LEMO

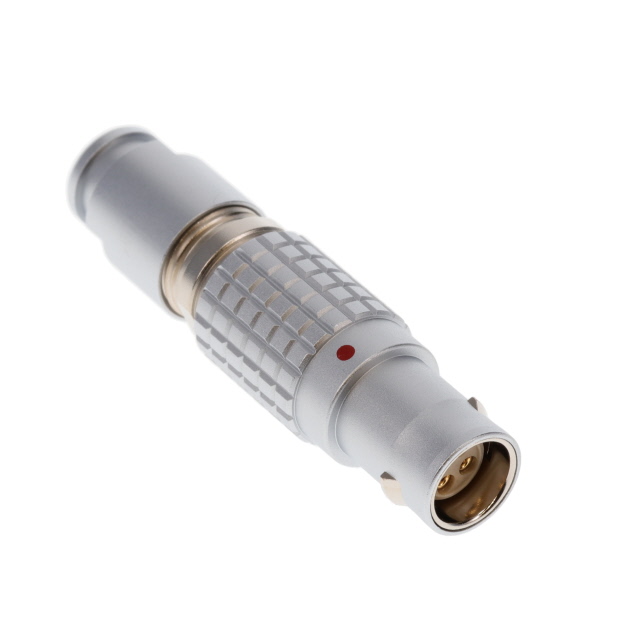

CONN PLUG FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FGK.1B.304.CLLD52Z

Backshell Material, Plating	Brass, Chrome
Cable Opening [diameter]	0.205 in, 0.165 in
Cable Opening [diameter]	4.2 mm
Cable Opening [diameter]	5.2 mm
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	K
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

CONN PLUG FMALE 4P GOLD SLDR CUP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Material Flammability Rating	Fastening Type	Primary Material	Contact Finish - Mating	Contact Material	Mounting Type	Backshell Material, Plating	Number of Positions	Orientation	Insert Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Shell Finish	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Shell Material	Connector Type	Features	Ingress Protection	Current Rating (Amps)
LEMO FGK.1B.304.CLLD52Z	59 Áin	1.5 Ám	Shielded	UL94 V-0	Push-Pull	Metal	Gold	Bronze	Free Hanging (In-Line)	Brass, Chrome	4	K	Polyetheretherketone (PEEK)	Silver	-55 °C	250 °C	304	Chrome	0.165 in, 0.205 in	4.2 mm	5.2 mm	Brass	Female Sockets, Plug	Backshell	IP50	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup
