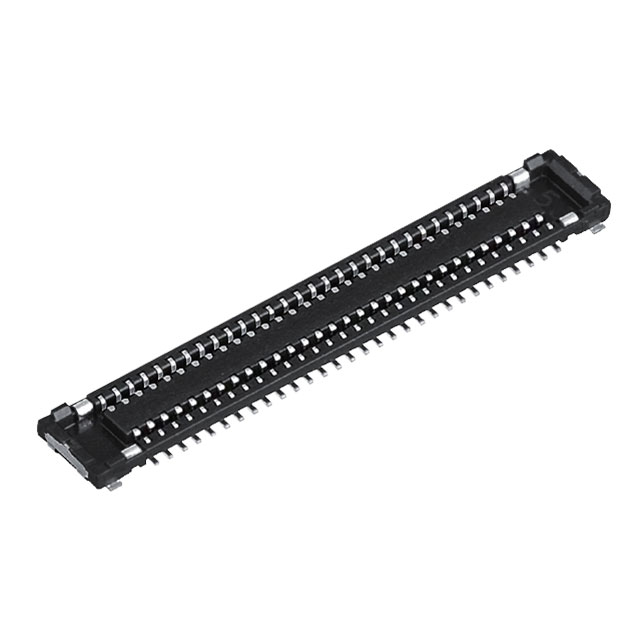

AXG7600J7A

Obsolete

Panasonic Electric Works

CONN SOCKET 60POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXG7600J7A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.023 in
Height Above Board	0.59 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	62
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Contact Finish	Mated Stacking Heights	Mounting Type	Features	Height Above Board	Height Above Board	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions
Panasonic Electric Works AXG760047	Gold	0.6 mm	Surface Mount	Solder Retention	0.023 in	0.59 mm	Socket Center Strip Contacts	0.35 mm	0.014 in	2	60
Panasonic Electric Works AXG7600J7A	Gold	0.6 mm	Surface Mount	Solder Retention	0.023 in	0.59 mm	Socket Center Strip Contacts	0.35 mm	0.014 in	2	62

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

62 (60 + 2 Power) Position Connector Socket, Center Strip Contacts Surface Mount Gold
