ACSC56-41QBWA/D-F01

Active

Kingbright

DISPLAY 7SEG 0.56" SGL BLU 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACSC56-41QBWA/D-F01

Active

Kingbright

DISPLAY 7SEG 0.56" SGL BLU 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACSC56-41QBWA/D-F01

Color	Blue
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	15 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	120 mW
Size / Dimension [x]	0.148 "
Size / Dimension [x]	3.75 mm
Size / Dimension [y]	0.488 in
Size / Dimension [y]	12.4 mm
Size / Dimension [z]	0.669 in
Size / Dimension [z]	17 mm
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Peak	468 nm

ACSC56 Series

Part	Current - Test	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Package / Case	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Number of Characters [custom]	Common Pin	Color	Display Type	Power Dissipation (Max) [Max]	Digit/Alpha Size
Kingbright ACSC56-41ZGWA-F01	10 mA 20 mA	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	160 mcd	10-SMD No Lead	3.3 V	0.56 in	14.22 mm	515 nm	1	Common Cathode	Green	7-Segment	102.5 mW
Kingbright ACSC56-41SYKWA-F01	20 mA	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	76 mcd	10-SMD No Lead	2 V	0.56 in	14.22 mm	590 nm	1	Common Cathode	Yellow	7-Segment	75 mw
Kingbright ACSC56-41SRWA-F01	20 mA	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm		10-SMD No Lead	1.85 V	0.56 in	14.22 mm	660 nm	1	Common Cathode	Red	7-Segment	75 mw
Kingbright ACSC56-41QWA/D-F01	10 mA	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	38 mcd	10-SMD No Lead	3 V	14.2 mm			1	Common Cathode	White	7-Segment	120 mW	0.56 in
Kingbright ACSC56-41CGKWA-F01	10 mA	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	25 mcd	10-SMD No Lead	2 V	0.56 in	14.22 mm		1	Common Cathode	Green	7-Segment	75 mw
Kingbright ACSC56-41SEKWA-F01	20 mA	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	78 mcd	10-SMD No Lead	2.1 V	0.56 in	14.22 mm	610 nm	1	Common Cathode		7-Segment	75 mw
Kingbright ACSC56-41SURKWA-F01	20 mA	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	44 mcd	10-SMD No Lead	1.95 V	0.56 in	14.22 mm	650 nm	1	Common Cathode	Red	7-Segment	75 mw
Kingbright ACSC56-41QBWA/D-F01	20 mA	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	15 mcd	10-SMD No Lead	3.3 V	0.56 in	14.22 mm	468 nm	1	Common Cathode	Blue	7-Segment	120 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.41
		10	$ 1.70
		100	$ 1.43
	Digi-Reel®	1	$ 2.41
		10	$ 1.70
		100	$ 1.43
	Tape & Reel (TR)	400	$ 1.43

Description

General part information

ACSC56 Series

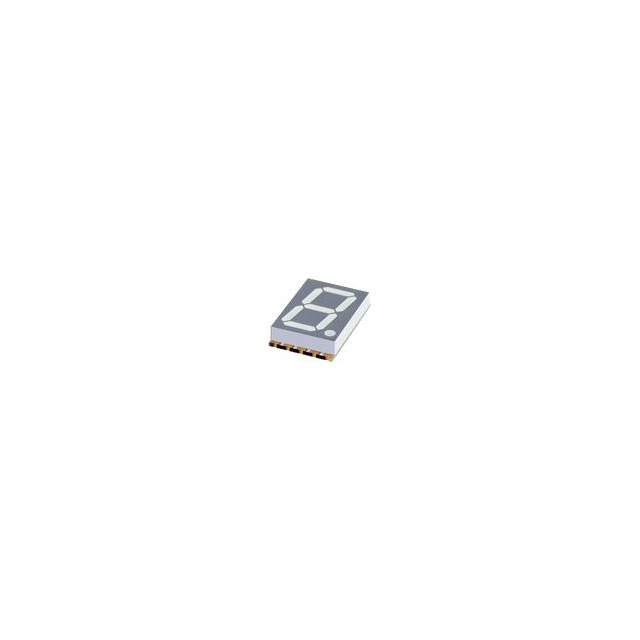

Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Cathode 3.3V 20mA 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) 10-SMD, No Lead
