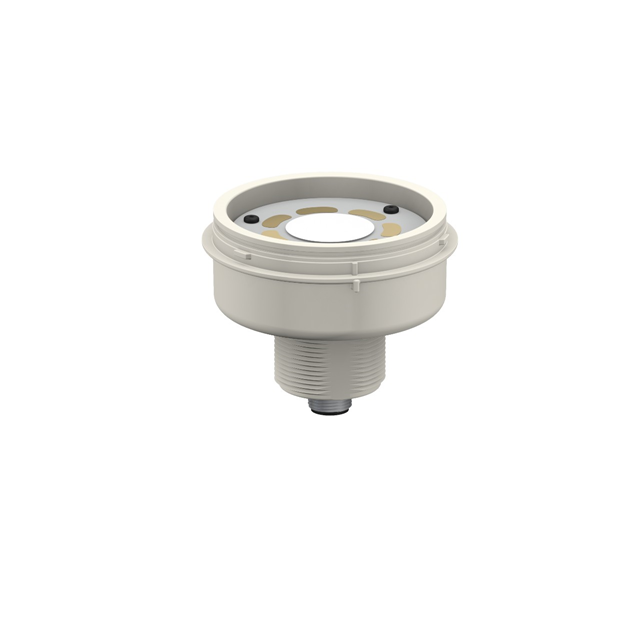

B-TL70DXN9-Q8C

Active

BANNER ENGINEERING

TL70 WIRELESS BASE MODULE 900 MHZ

Search across all available documentation for this part.

Active

BANNER ENGINEERING

TL70 WIRELESS BASE MODULE 900 MHZ

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B-TL70DXN9-Q8C	B-TL70 Series

Function - Lighting	-	Steady
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Number of Stacks	1	1
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 °C
Termination Style	Connector	Wire Leads, Cable with Connector, Connector
Type	Complete Unit	Mounting Base, Complete Unit, Optical Element
Voltage - Supply [Max]	30 VDC	30 - 240 VDC
Voltage - Supply [Min]	12 V	12 - 100 V

BASE MODULE, TOWER LIGHT, 2M, BLACK

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Number of Stacks	Function - Lighting
BANNER ENGINEERING B-TL70-8	12 V	30 VDC	Wire Leads	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70-QP8	12 V	30 VDC	Cable with Connector	Complete Unit	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant	1
BANNER ENGINEERING B-TL70DXN9-Q5	12 V	30 VDC	Connector	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70DXN9-Q8C	12 V	30 VDC	Connector	Complete Unit	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant	1
BANNER ENGINEERING B-TL70-Q5	12 V	30 VDC	Wire Leads	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70-Q8	12 V	30 VDC	Wire Leads	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70Z-Q5	100 VAC	240 VAC	Wire Leads	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70Z-5	100 VAC	240 VAC	Wire Leads	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70-5 W/16	12 V	30 VDC	Wire Leads	Optical Element	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant	1	Steady
BANNER ENGINEERING B-TL70DXN2-Q5	12 V	30 VDC	Connector	Complete Unit	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 199.00
Newark	Each	1	$ 203.00

General part information

Stack Light Complete Unit LED Connector
