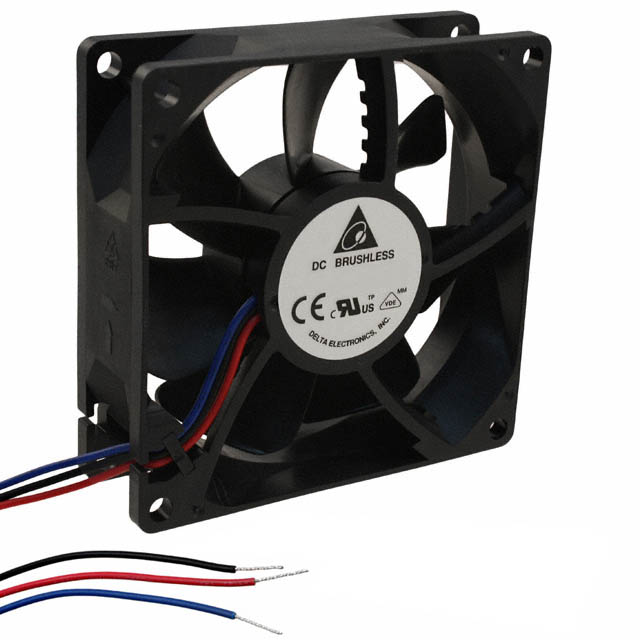

QFR0824SH-DT50

Obsolete

Delta Electronics

FAN AXIAL 80X25.4MM 24VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 80X25.4MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	QFR0824SH-DT50

Air Flow	1.53 mł/min
Air Flow	54.6 CFM
Approval Agency	CE, cURus, VDE
Bearing Type	Ball
Current Rating (Amps)	0.17 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	41.2 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	4300 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.331 in H2O
Static Pressure	82.4 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	14 VDC
Weight	0.195 lb
Weight	88.45 g
Width [y]	25.4 mm

FAN AXIAL 80X25.4MM 24VDC WIRE

Part	Current Rating (Amps)	Air Flow	Air Flow	Material - Frame	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Termination	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Weight	Weight	Approval Agency	Noise	Width [y]	Features	Voltage - Rated	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	RPM
Delta Electronics QFR0824SH-DT50	0.17 A	1.53 mł/min	54.6 CFM	Plastic	Ball	27.6 VDC	14 VDC	3 Wire Leads	Tubeaxial	80 mm	80 mm	50000 Hrs	0.195 lb	88.45 g	CE, cURus, VDE	41.2 dB(A)	25.4 mm	Locked Rotor Protection, Speed Sensor (Tach)	24 VDC	0.331 in H2O	82.4 Pa	70 °C	70 °C	-10 °C	-10 °C	Plastic	4300 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 54.6 CFM (1.53m³/min) 3 Wire Leads
