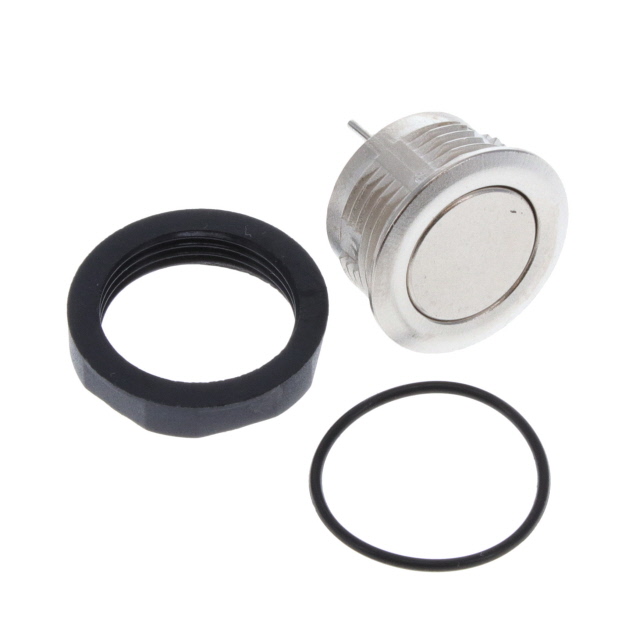

MCS-16-NO00A12-Z0NCZ0NCWF-00000000-P0000-S

Active

SCHURTER Inc.

MCS 16, METAL SWITCH SHORT STROK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MCS-16-NO00A12-Z0NCZ0NCWF-00000000-P0000-S

Active

SCHURTER Inc.

MCS 16, METAL SWITCH SHORT STROK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.57
		10	$ 6.81
		25	$ 6.47
		50	$ 6.20
		100	$ 5.99
		250	$ 5.68
		500	$ 5.20
		1000	$ 4.96

Description

General part information

MCS-16-NO Series

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MCS-16-NO00A12-Z0NCZ0NCWF-00000000-P0000-S	MCS-16-NO Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	125 mA	80 - 125 mA
Electrical Life	1000000 Cycles	1000000 Cycles
Features	-	Stainless Steel
Illumination Type, Color	-	Green/Red, LED
Illumination Voltage (Nominal)	-	2 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	16.1 mm	16.1 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	PC Pin	Solder Lug, PC Pin
Type	Anti-Vandal	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V	24 - 48 V

MCS-16-NO Series

MCS 16, METAL SWITCH SHORT STROK

Part	Actuator Marking	Circuit	Current Rating (Amps)	Mechanical Life	Termination Style	Ingress Protection	Mounting Type	Voltage Rating - DC	Actuator Type	Electrical Life	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Type	Illumination Voltage (Nominal)	Illumination Type, Color	Features
SCHURTER Inc. MCS-16-NO00A12-Z0NCZ0NCWF-00000000-S0000-S	No Marking	SPST-NO	125 mA	1000000 Cycles	Solder Lug	IP67 - Dust Tight, Waterproof	Panel Mount, Front	48 V	Button, Flush, Round	1000000 Cycles	Off-Mom	-20 C	60 °C	16.1 mm	Silver	Anti-Vandal
SCHURTER Inc. MCS-16-NO00A12-Z0NCZ0NCWF-PI0RG00R-S0000-S	No Marking	SPST-NO	125 mA	1000000 Cycles	Solder Lug	IP67 - Dust Tight, Waterproof	Panel Mount, Front	48 V	Button, Flush, Round	1000000 Cycles	Off-Mom	-20 C	60 °C	16.1 mm	Silver	Anti-Vandal, Illuminated	2 VDC	Green/Red, LED
SCHURTER Inc. MCS-16-NO00A12-Z0NCS3NCWF-PI0RG00R-S0000-S	No Marking	SPST-NO	125 mA	1000000 Cycles	Solder Lug	IP67 - Dust Tight, Waterproof	Panel Mount, Front	48 V	Button, Flush, Round	1000000 Cycles	Off-Mom	-20 C	60 °C	16.1 mm	Silver	Anti-Vandal, Illuminated	2 VDC	Green/Red, LED	Stainless Steel
SCHURTER Inc. MCS-16-NO00A08-Z0NCZ0NCWF-00000000-P0000-S	No Marking	SPST-NO	80 mA	1000000 Cycles	PC Pin	IP67 - Dust Tight, Waterproof	Panel Mount, Front	24 V	Button, Flush, Round	1000000 Cycles	Off-Mom	-20 C	60 °C	16.1 mm	Silver	Anti-Vandal
SCHURTER Inc. MCS-16-NO00A12-Z0NCS3NCWF-00000000-S0000-S	No Marking	SPST-NO	125 mA	1000000 Cycles	Solder Lug	IP67 - Dust Tight, Waterproof	Panel Mount, Front	48 V	Button, Flush, Round	1000000 Cycles	Off-Mom	-20 C	60 °C	16.1 mm	Silver	Anti-Vandal			Stainless Steel
SCHURTER Inc. MCS-16-NO00A12-Z0NCZ0NCWF-00000000-P0000-S	No Marking	SPST-NO	125 mA	1000000 Cycles	PC Pin	IP67 - Dust Tight, Waterproof	Panel Mount, Front	48 V	Button, Flush, Round	1000000 Cycles	Off-Mom	-20 C	60 °C	16.1 mm	Silver	Anti-Vandal
