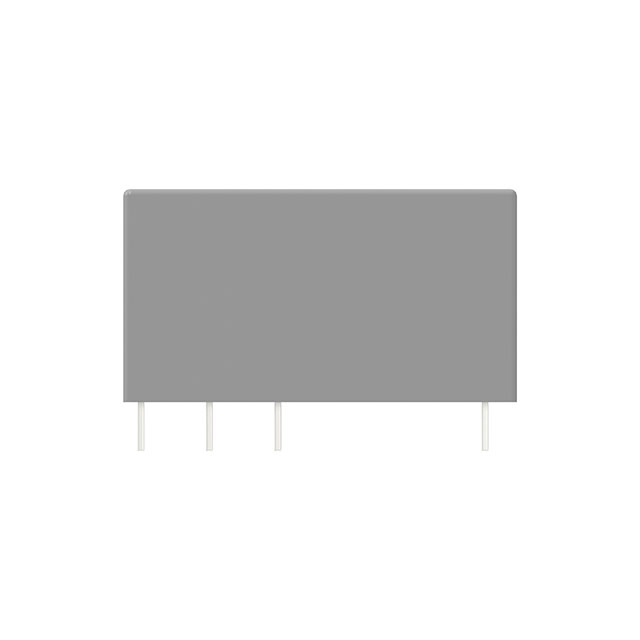

7-1415025-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Resistance	Must Operate Voltage	Mounting Type	Coil Current	Must Release Voltage	Coil Insulation	Load - Max Switching	Contact Rating (Current)	Contact Material	Coil Type	Contact Form	Relay Type	Approval Agency	Coil Voltage	Release Time	Operate Time	Switching Voltage [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style
TE Connectivity Potter & Brumfield Relays 9-1415535-4	1440 Ohms	16.8 VDC	Through Hole	16.7 mA	2.4 VDC	Class F	6400 VA	16 A	Silver Nickel (AgNi)	Non Latching	SPDT (1 Form C)	General Purpose	CQC CSA cURus VDE	24 VDC	6 ms	8 ms	400 VAC	-40 °C	105 ░C	PC Pin
TE Connectivity Potter & Brumfield Relays 7-1415025-1	1440 Ohms	16.8 VDC	Through Hole	16.7 mA	2.4 VDC	Class F	6400 VA	16 A	Silver Nickel (AgNi)	Non Latching	SPDT (1 Form C)	General Purpose	CQC CSA cURus VDE	24 VDC	6 ms	8 ms	400 VAC	-40 °C	105 ░C	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10000	$ 1.87

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
