MS3112E8-3S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3112E8-3S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3112E8-3S | MS3112E8 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | - | 2 - 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, Y |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 8-3 | 8-3, 8-2, 8-4 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.53 | |
| 1 | $ 35.89 | |||
| 10 | $ 31.43 | |||
| 10 | $ 32.90 | |||
| 25 | $ 30.07 | |||
| 25 | $ 29.84 | |||
| 50 | $ 27.78 | |||
| 100 | $ 25.91 | |||
| 250 | $ 23.71 | |||
MS3112E8 Series
CONN RCPT FMALE 3P GOLD SLDR CUP
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Shell Finish | Primary Material | Qualification | Contact Finish - Mating | Orientation | Shielding | Shell Material | Connector Type | Applications | Color | Fastening Type | Shell Size - Insert | Grade | Mounting Feature | Insert Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3112E8-3S | Copper Alloy | -55 °C | 125 °C | Environment Resistant | Olive Drab Chromate over Cadmium | Metal | MIL-DTL-26482 Series I | Gold | N | Unshielded | Aluminum | Receptacle, Female Sockets | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Bayonet Lock | 8-3 | Military | Flange | Neoprene | |
Amphenol Industrial Operations MS3112E8-3P | Copper Alloy | -55 °C | 125 °C | Environment Resistant | Olive Drab Chromate over Cadmium | Metal | MIL-DTL-26482 Series I | Gold | N | Unshielded | Aluminum | Male Pins, Receptacle | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Bayonet Lock | 8-3 | Military | Flange | Neoprene | |
Amphenol Industrial Operations MS3112E8-2P | Copper Alloy | -55 °C | 125 °C | Environment Resistant | Olive Drab Chromate over Cadmium | Metal | MIL-DTL-26482 Series I | Gold | N | Unshielded | Aluminum | Male Pins, Receptacle | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Bayonet Lock | 8-2 | Military | Flange | Neoprene | 2 |
Amphenol Industrial Operations MS3112E8-4SY | Copper Alloy | -55 °C | 125 °C | Environment Resistant | Olive Drab Chromate over Cadmium | Metal | MIL-DTL-26482 Series I | Gold | Y | Unshielded | Aluminum | Receptacle, Female Sockets | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Bayonet Lock | 8-4 | Military | Flange | Neoprene | 4 |
Amphenol Industrial Operations MS3112E8-2S | Copper Alloy | -55 °C | 125 °C | Environment Resistant | Olive Drab Chromate over Cadmium | Metal | MIL-DTL-26482 Series I | Gold | N | Unshielded | Aluminum | Receptacle, Female Sockets | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Bayonet Lock | 8-2 | Military | Flange | Neoprene | 2 |
Description
General part information
MS3112E8 Series

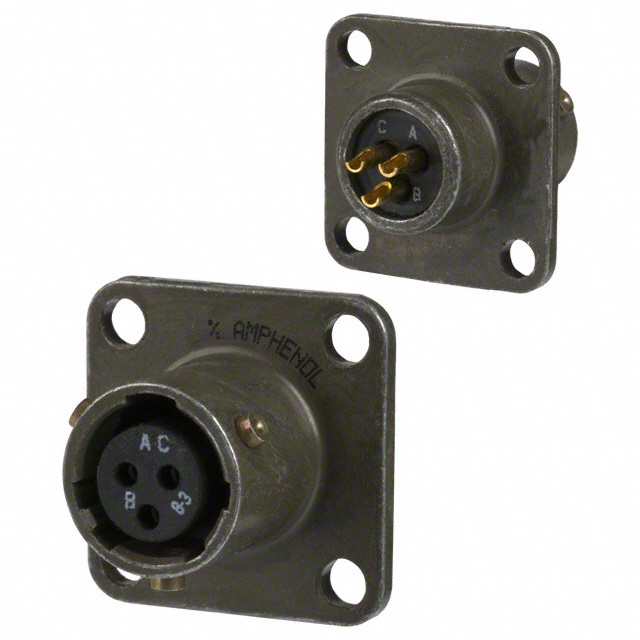

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
