ActiveTE Connectivity AMP Connectors
H6B-SGRH-M32
Deep-Dive with AI
Search across all available documentation for this part.
T1650063132-000
ActiveTE Connectivity AMP Connectors
H6B-SGRH-M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1650063132-000 | T165 Series |
|---|---|---|
| Connector Type | Base - Box Mount | Base - Box Mount |
| Features | - | Feed Through |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H6B | H6B, H24B, H16B, H10B |
| Size / Dimension [x] | 82 mm | 82 - 144 mm |
| Size / Dimension [x] | 3.228 in | 3.228 - 5.669 in |
| Size / Dimension [y] | 2.244 " | 2.244 " |
| Size / Dimension [y] | 57 mm | 57 mm |
| Size / Dimension [z] | 75.6 mm | 75.6 mm |
| Size / Dimension [z] | 2.976 " | 2.976 " |
| Style | Side Entry | Side Entry |
| Thread Size | M32 | PG29, M32, PG21, M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.59 | |
| 10 | $ 9.39 | |||
| 25 | $ 9.14 | |||
| 50 | $ 8.79 | |||
T165 Series
H6B-SGRH-2PG29
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Housing Material | Features | Ingress Protection | Lock Location | Housing Color | Style | Thread Size | Size | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1650063229-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 82 mm | 57 mm | 3.228 in | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG29 | H6B | Base - Box Mount |
TE Connectivity AMP Connectors T1650243232-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 144 mm | 57 mm | 5.669 " | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | M32 | H24B | Base - Box Mount |
TE Connectivity AMP Connectors T1650243121-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 144 mm | 57 mm | 5.669 " | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG21 | H24B | Base - Box Mount | |
TE Connectivity AMP Connectors T1650163121-000 | 125 °C | -40 °C | Powder Coated | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG21 | H16B | Base - Box Mount | |||||||
TE Connectivity AMP Connectors T1650103232-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 94 mm | 57 mm | 3.701 " | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | M32 | H10B | Base - Box Mount |
TE Connectivity AMP Connectors T1650062232-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 82 mm | 57 mm | 3.228 in | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | M32 | H6B | Base - Box Mount |
TE Connectivity AMP Connectors T1650063121-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 82 mm | 57 mm | 3.228 in | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG21 | H6B | Base - Box Mount | |
TE Connectivity AMP Connectors T1650243132-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 144 mm | 57 mm | 5.669 " | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | M32 | H24B | Base - Box Mount | |
TE Connectivity AMP Connectors T1650163129-000 | 125 °C | -40 °C | Powder Coated | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG29 | H16B | Base - Box Mount | |||||||
TE Connectivity AMP Connectors T1650063225-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 82 mm | 57 mm | 3.228 in | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | M25 | H6B | Base - Box Mount |
TE Connectivity AMP Connectors T1650103225-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 94 mm | 57 mm | 3.701 " | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | M25 | H10B | Base - Box Mount |
TE Connectivity AMP Connectors T1650163229-000 | 125 °C | -40 °C | Powder Coated | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG29 | H16B | Base - Box Mount | ||||||
TE Connectivity AMP Connectors T1650102532-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 94 mm | 57 mm | 3.701 " | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | M25, M32 | H10B | Base - Box Mount |
TE Connectivity AMP Connectors T1650063132-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 82 mm | 57 mm | 3.228 in | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | M32 | H6B | Base - Box Mount | |
TE Connectivity AMP Connectors T1650062121-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 82 mm | 57 mm | 3.228 in | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG21 | H6B | Base - Box Mount | |
TE Connectivity AMP Connectors T1650103229-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 94 mm | 57 mm | 3.701 " | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG29 | H10B | Base - Box Mount |
TE Connectivity AMP Connectors T1650243129-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 144 mm | 57 mm | 5.669 " | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG29 | H24B | Base - Box Mount | |
TE Connectivity AMP Connectors T1650062221-000 | 125 °C | -40 °C | Powder Coated | 75.6 mm | 2.976 " | 2.244 " | 82 mm | 57 mm | 3.228 in | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG21 | H6B | Base - Box Mount |
TE Connectivity AMP Connectors T1650163221-000 | 125 °C | -40 °C | Powder Coated | Aluminum Alloy, Die Cast | Feed Through | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | Gray | Side Entry | PG21 | H16B | Base - Box Mount |
Description
General part information
T165 Series

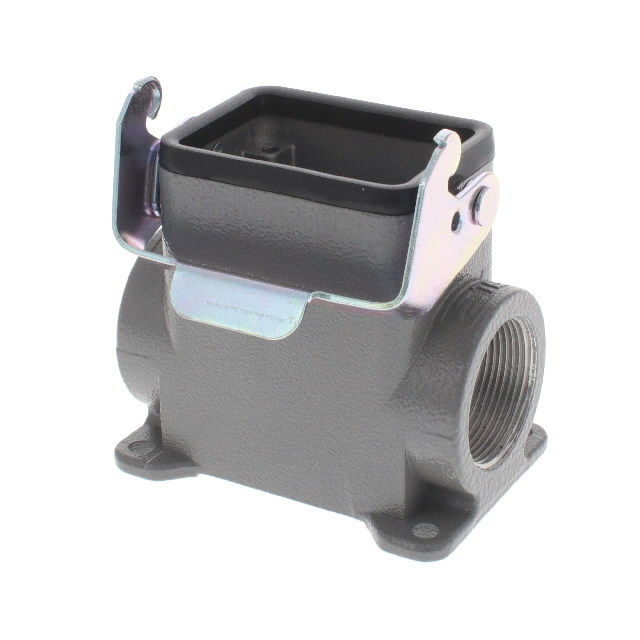

Base - Box Mount Connector Side Entry M32 H6B IP65 - Dust Tight, Water Resistant
