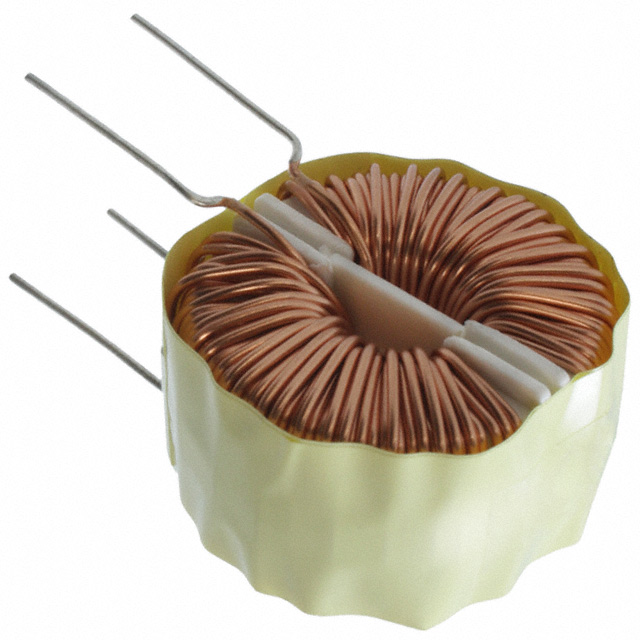

7122-RC
ActiveBourns Inc.
CMC 25.5MH 4A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7122-RC
ActiveBourns Inc.
CMC 25.5MH 4A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7122-RC |
|---|---|
| Current Rating (Max) [Max] | 4 A |
| DC Resistance (DCR) (Max) [Max] | 130 mOhm |
| Height (Max) | 31.24 mm |
| Height (Max) [Max] [z] | 1.23 in |
| Inductance @ Frequency | 25.5 mH, 1 kHz |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | No Base, Vertical, 4 PC Pin |
| Size / Dimension [custom] | 22.86 mm |
| Size / Dimension [custom] | 0.9 in |
| Size / Dimension [diameter] | 31.24 mm |
| Size / Dimension [diameter] | 1.23 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.37 | |
| 10 | $ 5.16 | |||
| 25 | $ 4.59 | |||
| 54 | $ 4.33 | |||
| 108 | $ 4.01 | |||
| 270 | $ 3.95 | |||
| 540 | $ 3.82 | |||
| 1026 | $ 3.57 | |||
| 2538 | $ 3.39 | |||
Description
General part information
7122 Series
25.5 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 4A DCR 130mOhm
