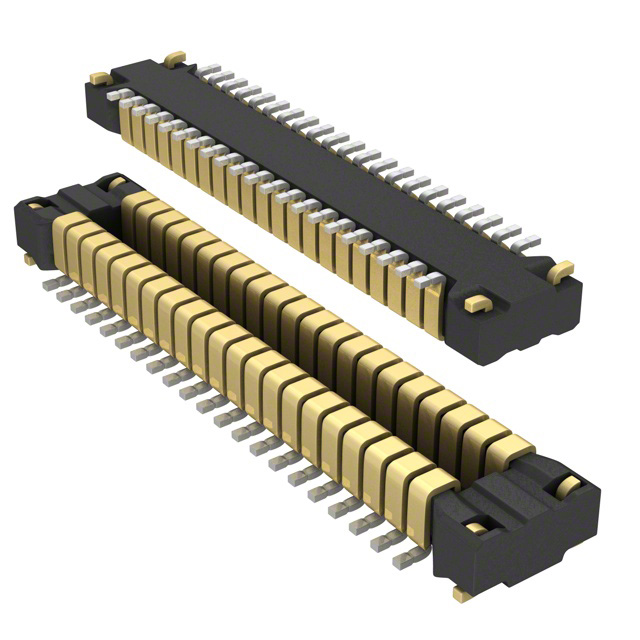

AXT642124

Active

Panasonic Electric Works

CONN HDR 42POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 42POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT642124

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	42
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Connector Type	Number of Positions	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Mated Stacking Heights	Features	Height Above Board [z]	Height Above Board [z]
Panasonic Electric Works AXT642124	Header Center Strip Contacts	42	Gold	2	0.016 in	0.4 mm	Surface Mount	1 mm	Solder Retention	0.84 mm	0.033 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

42 Position Connector Header, Center Strip Contacts Surface Mount Gold
