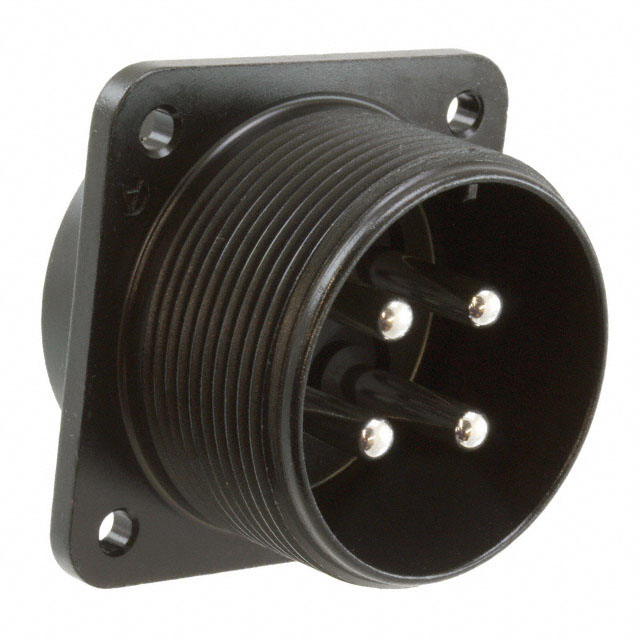

JL04HV-2E22-22PE-B-R
ActiveJAE Electronics
CONN RCPT MALE 4P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JL04HV-2E22-22PE-B-R
ActiveJAE Electronics
CONN RCPT MALE 4P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JL04HV-2E22-22PE-B-R |
|---|---|
| Applications | Medical, Industrial, Test Equipment & Measurement, Telecommunications |
| Cable Opening [custom] | 33 mm |
| Cable Opening [custom] | 1.299 in |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 46 A |
| Features | Ground |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Silicon Rubber |
| Mounting Feature | Flange |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Zinc |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 22 |
| Shell Size - Insert [Min] | 22 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.78 | |
| 10 | $ 29.58 | |||
| 25 | $ 28.30 | |||
| 50 | $ 27.39 | |||
| 100 | $ 26.48 | |||
| 250 | $ 25.02 | |||
Description
General part information
JL04HV-2 Series
4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
