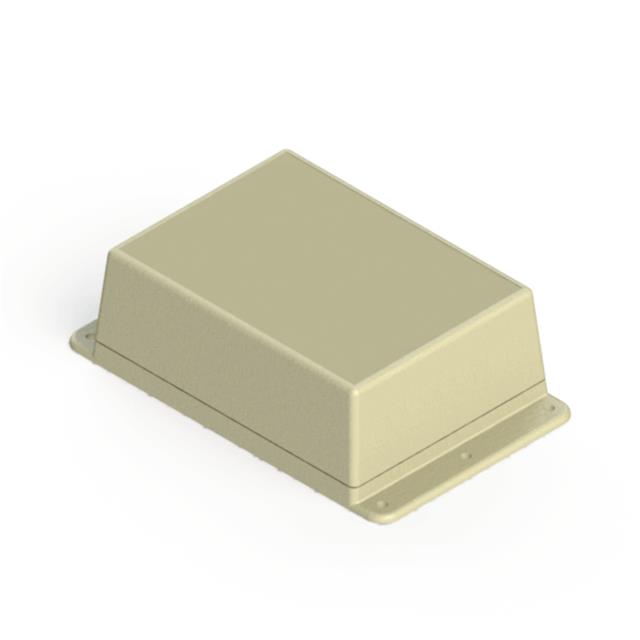

WM032I,AL

Active

Serpac

BOX ABS ALMOND 4.38"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WM032I,AL

Active

Serpac

BOX ABS ALMOND 4.38"L X 3.25"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM032I,AL

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Almond
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	40.64 mm
Height [z]	1.6 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.204 lb
Weight	92.53 g

WM032 Series

Part	Height [z]	Height [z]	Ratings	Features	Material	Weight	Weight	Thickness	Thickness	Material Flammability Rating	Area (L x W)	Area (L x W)	Color	Container Type	Design
Serpac WM032RI,AL	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Plastic ABS	0.204 lb	92.53 g	2.54 mm	0.1 in	UL94 HB	14.2 in²	92 cm˛	Almond	Box	Cover Included
Serpac WM032RC,GY	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Plastic Polycarbonate	0.204 lb	92.53 g	2.54 mm	0.1 in		14.2 in²	92 cm˛	Clear Cover/Door Gray	Box	Cover Included
Serpac WM032RI,BK	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Plastic ABS	0.204 lb	92.53 g	2.54 mm	0.1 in	UL94 HB	14.2 in²	92 cm˛	Black	Box	Cover Included
Serpac WM032,AL	40.64 mm	1.6 in	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Plastic ABS	0.204 lb	92.53 g	2.54 mm	0.1 in	UL94 HB	14.2 in²	92 cm˛	Almond	Box	Cover Included
Serpac WM032I,BK	40.64 mm	1.6 in	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Plastic ABS	0.204 lb	92.53 g	2.54 mm	0.1 in	UL94 HB	14.2 in²	92 cm˛	Black	Box	Cover Included
Serpac WM032R,GY	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Plastic ABS	0.204 lb	92.53 g	2.54 mm	0.1 in	UL94 HB	14.2 in²	92 cm˛	Gray	Box	Cover Included
Serpac WM032R,AL	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Plastic ABS	0.204 lb	92.53 g	2.54 mm	0.1 in	UL94 HB	14.2 in²	92 cm˛	Almond	Box	Cover Included
Serpac WM032RC,AL	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Plastic Polycarbonate	0.204 lb	92.53 g	2.54 mm	0.1 in		14.2 in²	92 cm˛		Box	Cover Included
Serpac WM032R,BK	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Plastic ABS	0.204 lb	92.53 g	2.54 mm	0.1 in	UL94 HB	14.2 in²	92 cm˛	Black	Box	Cover Included
Serpac WM032,GY	40.64 mm	1.6 in	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Plastic ABS	0.204 lb	92.53 g	2.54 mm	0.1 in	UL94 HB	14.2 in²	92 cm˛	Gray	Box	Cover Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.44

Description

General part information

WM032 Series

Box Plastic, ABS Almond Cover Included 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.600" (40.64mm)
