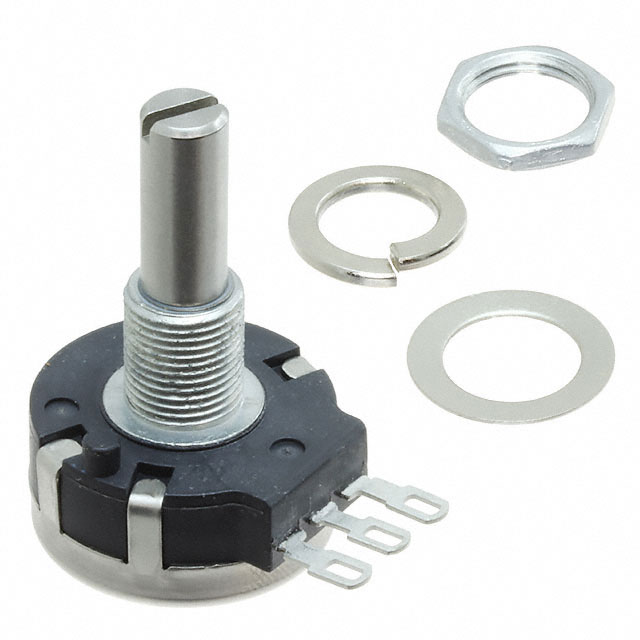

PDF241-S425S-103B0
ObsoleteBourns Inc.
POT 10K OHM 1/2W CARBON LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDF241-S425S-103B0
ObsoleteBourns Inc.
POT 10K OHM 1/2W CARBON LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDF241-S425S-103B0 |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Diameter [diameter] | 0.25 in |
| Actuator Length [x] | 0.984 in |
| Actuator Length [x] | 25 mm |
| Actuator Type | Slotted |
| Built in Switch | False |
| Bushing Thread | M9 x 0.75 |
| Features | Long Life |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance (Ohms) | 10k |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Size - Body [diameter] | 0.906 in |
| Size - Body [diameter] | 23 mm |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PDF241 Series
10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.5W, 1/2W Solder Lug
