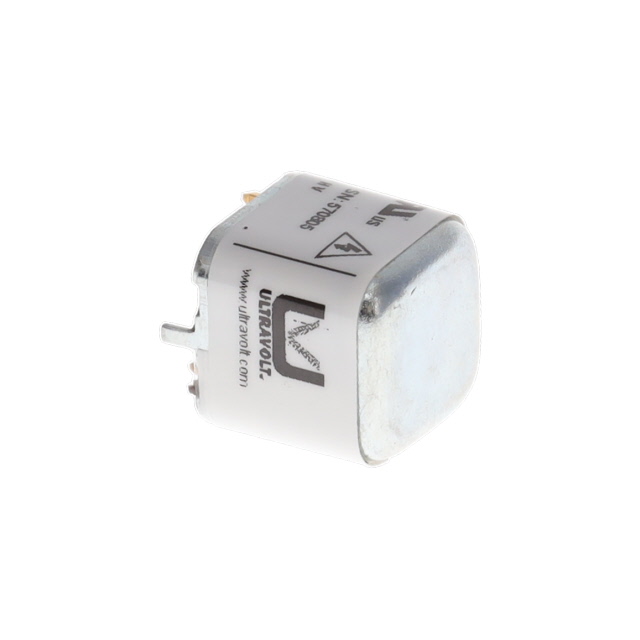

0.1XS5-N0.1

Active

ULTRAVOLT / Advanced Energy

EXTRA SMALL SERIES -100V, 100MW

Search across all available documentation for this part.

Active

ULTRAVOLT / Advanced Energy

EXTRA SMALL SERIES -100V, 100MW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0.1XS5-N0.1	0.1XS5 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus	CE, cURus
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	1 mA	1 mA
Features	Remote On/Off, Adjustable Output	Remote On/Off, Adjustable Output
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Package / Case	4-DIP Module	4-DIP Module
Power (Watts)	0.1 W	0.1 W
Size / Dimension [x]	0.43 "	0.43 "
Size / Dimension [x]	11 mm	11 mm
Size / Dimension [y]	0.43 in	0.43 in
Size / Dimension [y]	11 mm	11 mm
Size / Dimension [z]	0.43 "	0.43 "
Size / Dimension [z]	11 mm	11 mm
Type	High Voltage - Non-Isolated Module	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Output 1 [Max]	100 V	100 V
Voltage - Output 1 [Min]	0 V	0 V

EXTRA SMALL SERIES -100V, 100MW

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Approval Agency	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Applications	Control Features	Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Outputs	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]
ULTRAVOLT / Advanced Energy 0.1XS5-N0.1	0.43 "	11 mm	0.43 in	11 mm	0.43 "	11 mm	0 V	100 V	CE, cURus	5.5 V	Through Hole	4-DIP Module	ITE (Commercial)	Active Low, Enable	High Voltage - Non-Isolated Module	0.1 W	-10 °C	65 °C	Adjustable Output, Remote On/Off	1	4.5 V	1 mA
ULTRAVOLT / Advanced Energy 0.1XS5-P0.1	0.43 "	11 mm	0.43 in	11 mm	0.43 "	11 mm	0 V	100 V	CE, cURus	5.5 V	Through Hole	4-DIP Module	ITE (Commercial)	Active High, Enable	High Voltage - Non-Isolated Module	0.1 W	-10 °C	65 °C	Adjustable Output, Remote On/Off	1	4.5 V	1 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Voltage - Non-Isolated Module DC DC Converter 1 Output 0 ~ 100V 1mA 4.5V - 5.5V Input
