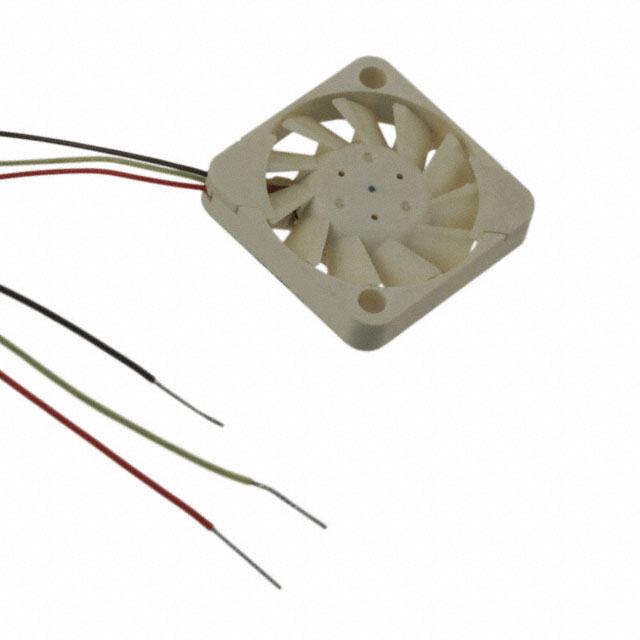

UF3H3-500

Obsolete

Sunon Fans

FAN AXIAL 17X3MM VAPO 3VDC WIRE

Search across all available documentation for this part.

Obsolete

Sunon Fans

FAN AXIAL 17X3MM VAPO 3VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	UF3H3-500

Air Flow	0.575 CFM
Air Flow	0.016 m³/min
Approval Agency	CE
Current Rating (Amps)	0.037 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Ingress Protection	IP55 - Dust Protected, Water Resistant
Material - Blade	Liquid Crystal Polymer (LCP)
Material - Frame	Magnesium
Noise	32 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.1 W
RPM	13000 RPM
Size / Dimension [x]	17 mm
Size / Dimension [y]	17 mm
Static Pressure	21.2 Pa
Static Pressure	0.085 in H2O
Termination	3 Wire Leads
Voltage - Rated	3 VDC
Voltage Range [Max]	3.5 VDC
Voltage Range [Min]	2 V
Weight	1.36 g
Weight	0.003 lb
Width [y]	3 mm

FAN AXIAL 17X3MM VAPO 3VDC WIRE

Part	Power (Watts)	Static Pressure	Static Pressure	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Features	Weight	Weight	Current Rating (Amps)	Width [y]	Material - Frame	Ingress Protection	Fan Type	Termination	Material - Blade	RPM	Approval Agency	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Voltage Range [Min]	Voltage Range [Max]
Sunon Fans UF3H3-500	0.1 W	21.2 Pa	0.085 in H2O	0.575 CFM	0.016 m³/min	17 mm	17 mm	Auto Restart, Speed Sensor (Tach)	1.36 g	0.003 lb	0.037 A	3 mm	Magnesium	IP55 - Dust Protected, Water Resistant	Tubeaxial	3 Wire Leads	Liquid Crystal Polymer (LCP)	13000 RPM	CE	3 VDC	70 °C	70 °C	-10 °C	-10 °C	32 dB	2 V	3.5 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 3VDC Square - 17mm L x 17mm H Vapo-Bearing™ 0.575 CFM (0.016m³/min) 3 Wire Leads
